Front Crankshaft Seal: Service and Repair

^ Tools Required
- J 35468 Cover Aligner Seal Installer

Removal Procedure





1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement.

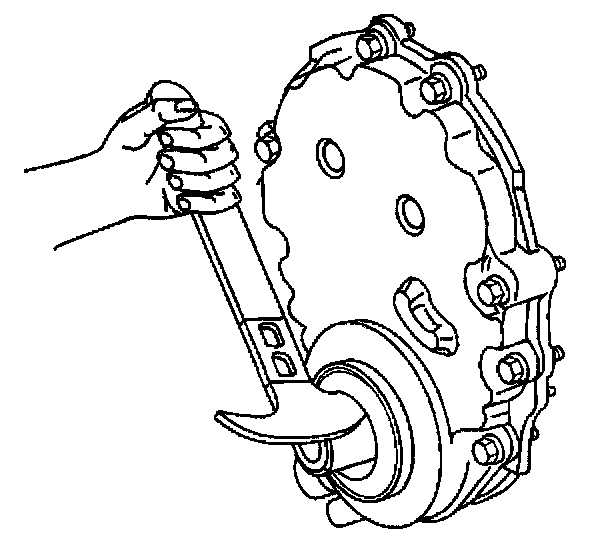

2. Use a suitable prying tool to remove the crankshaft front oil seal.
3. Inspect the engine front cover seal bore for damage.
4. Inspect the crankshaft balancer sealing surface for damage. Refer to Crankshaft Balancer Clean and Inspect.


Installation Procedure





1. Look to ensure that the pre-applied grease on the crankshaft front oil seal is intact.

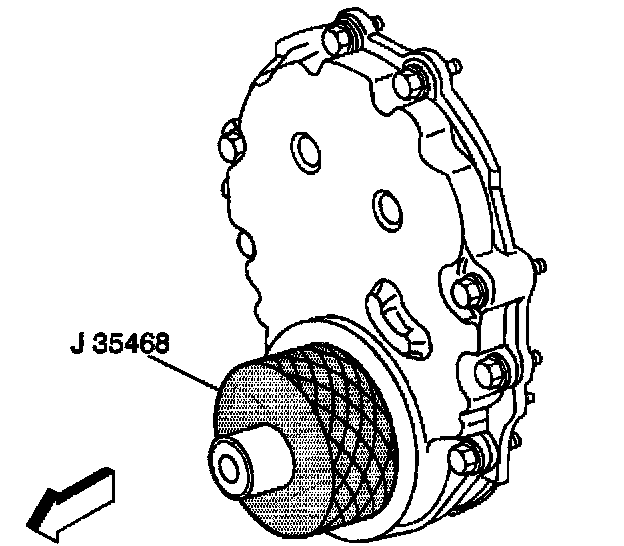

2. Use the J 35463 In order to install the crankshaft front oil seal.
3. Inspect to ensure the crankshaft front seal is flush and square to the engine front cover.
4. Install crankshaft balancer. Refer to Crankshaft Balancer Replacement.
