Accessory Mounting Brackets Replacement (Right)

Removal Procedure





1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure.
2. Remove the engine cooling fan. Refer to Fan Clutch Replacement in Cooling System.
3. Remove the drive belt. Refer to Drive Belt Replacement.
4. Remove the generator. Refer to Generator Replacement .

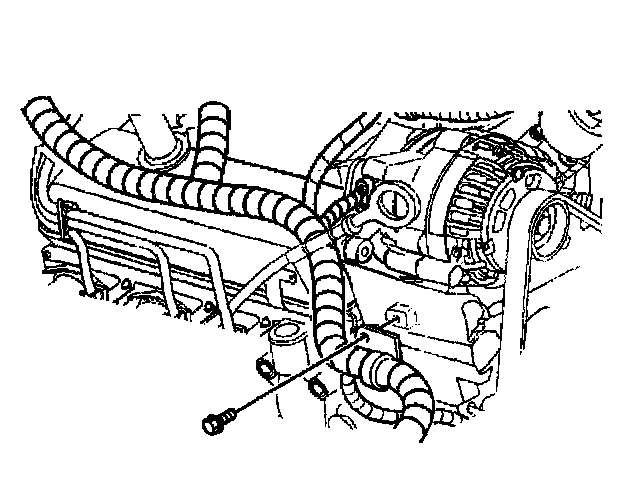

5. Remove the wire harness bracket from the generator and drive belt tensioner bracket.
6. Remove the belt tensioner. Refer to Drive Belt Tensioner Replacement.
7. Remove the belt idler pulley. Refer to Drive Belt Idler Pulley Replacement.

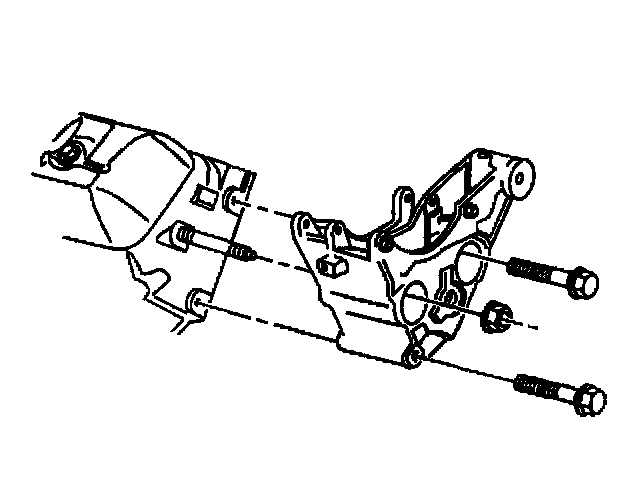

8. Remove the three bolts and nut holding the generator and drive belt tensioner bracket to the engine.
9. Slide the generator and drive belt tensioner bracket off of the stud.


Installation Procedure





1. Slide the generator and drive belt tensioner bracket on the stud.

Notice: Refer to Fastener Notice in Service Precautions.

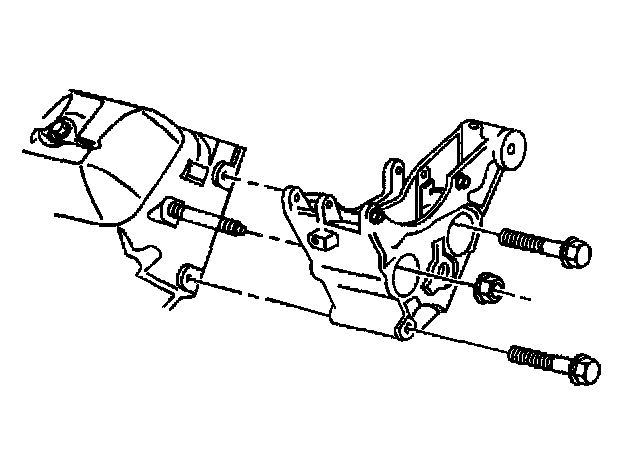

2. Install the three bolts and the nut.
^ Tighten the bolts and nut to 41 Nm (30 ft. lbs.).
3. Install the belt idler pulley. Refer to Drive Belt Idler Pulley Replacement.
4. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement.





5. Install the wire harness bracket to the generator and drive belt tensioner bracket.
^ Tighten the bolt to 20 Nm (15 ft. lbs.).
6. Install the generator. Refer to Generator Replacement .
7. Install the drive belt. Refer to Drive Belt Replacement.
8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure.
9. Install the engine cooling fan. Refer to Fan Clutch Replacement in Cooling System.
