Harmonic Balancer - Crankshaft Pulley: Service and Repair

^ Tools Required

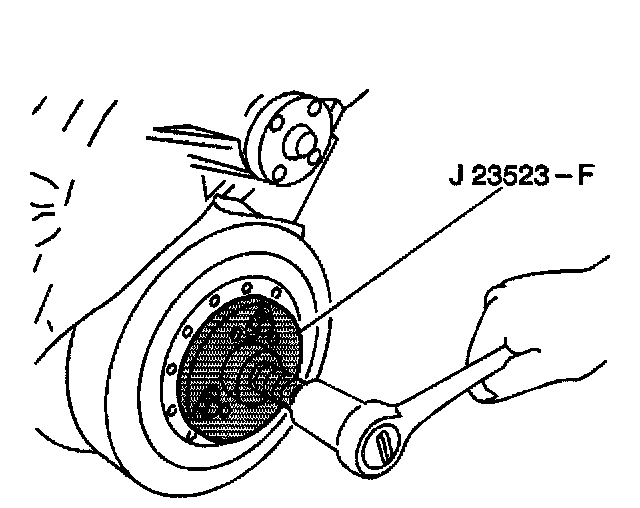

- J 23523-F Crankshaft Balancer Remover and Installer

Removal Procedure





1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure.
2. Remove the drive belt. Refer to Drive Belt Replacement.
3. Remove the fan shroud assembly. Refer to Fan Shroud Replacement in Cooling System.

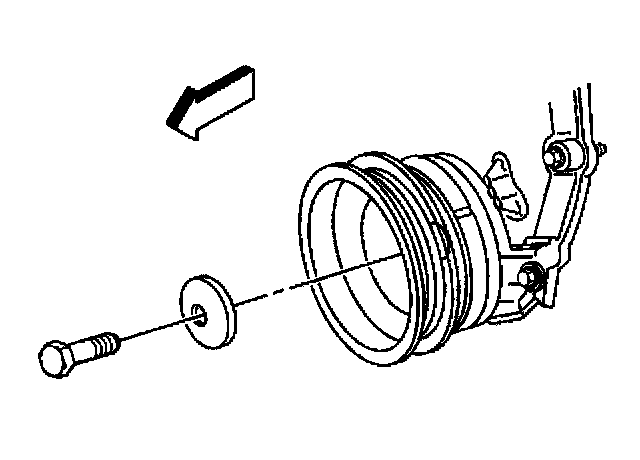

4. Remove the crankshaft balancer. Refer to Crankshaft Balancer Removal.
5. Clean and inspect all parts. Refer to Crankshaft Balancer Clean and Inspect.


Installation Procedure





1. Install the crankshaft balancer. Refer to Crankshaft Balancer Installation.
2. Install the drive belt. Refer to Drive Belt Replacement.
3. Install the fan shroud assembly. Refer to Fan Shroud Replacement in Cooling System.
4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure.
