Crankshaft Seal Retainer: Service and Repair

Removal Procedure





1. Remove the transmission assembly. Refer to Transmission Replacement in Transmission and Drivetrain.
2. Remove the flywheel. Refer to Engine Flywheel Replacement.
3. Loosen and lower the oil pan. Refer to Oil Pan Replacement

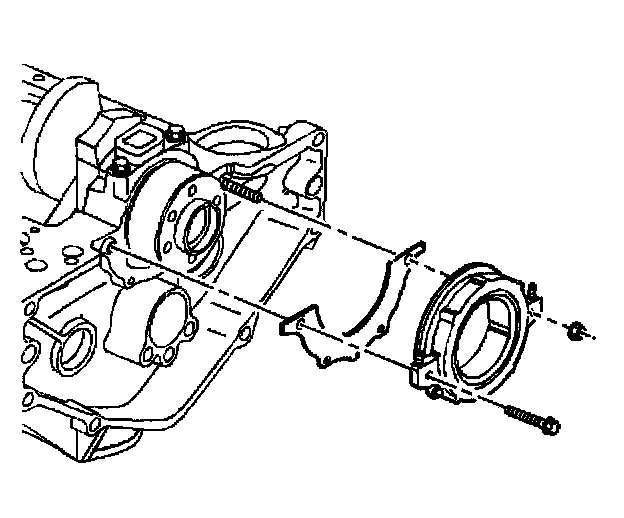

4. Remove the crankshaft rear oil seal housing. Refer to Crankshaft Rear Oil Seal and Housing Removal.


Installation Procedure

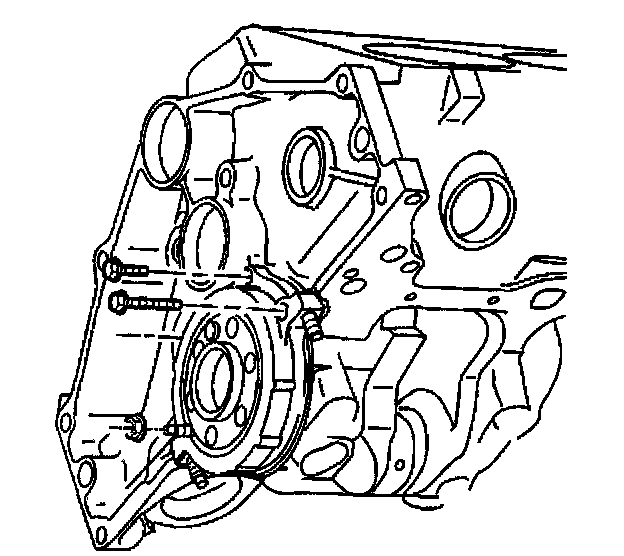

1. Install the oil seal housing. Refer to Crankshaft Rear Oil Seal and Housing Installation.
2. Install the flywheel. Refer to Engine Flywheel Replacement
3. Install the transmission assembly. Refer to Transmission Replacement in Transmission and Drivetrain.
