Right Rear Door Wiring (LH Similar), Radio Speaker
Right Rear Door Wiring (LH Similar), Radio Speaker

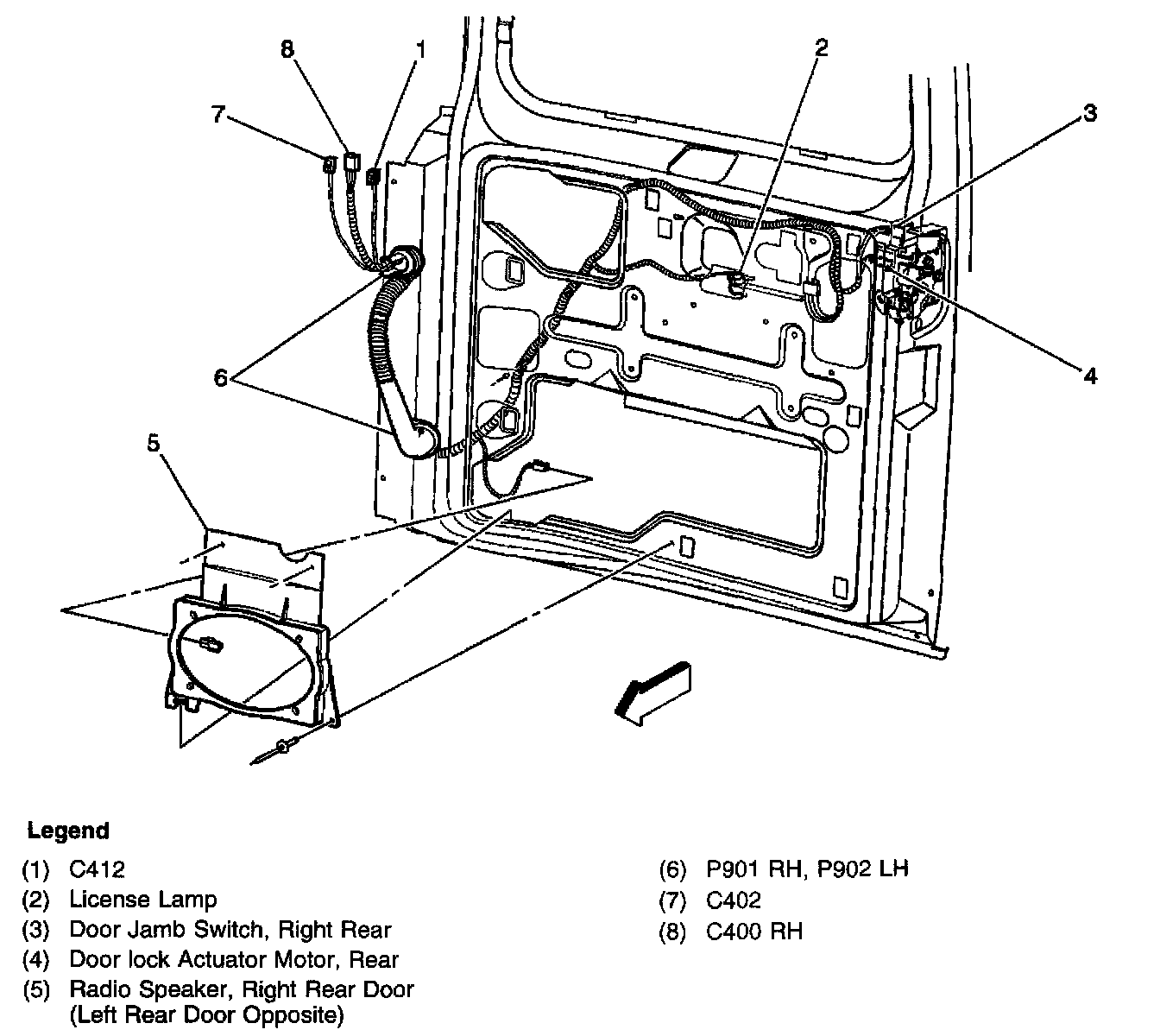

Harness Routing Views (Right Rear Door Wiring (LH Similar), Radio Speaker):
