Power Brake Fluid Flow Alarm and Module

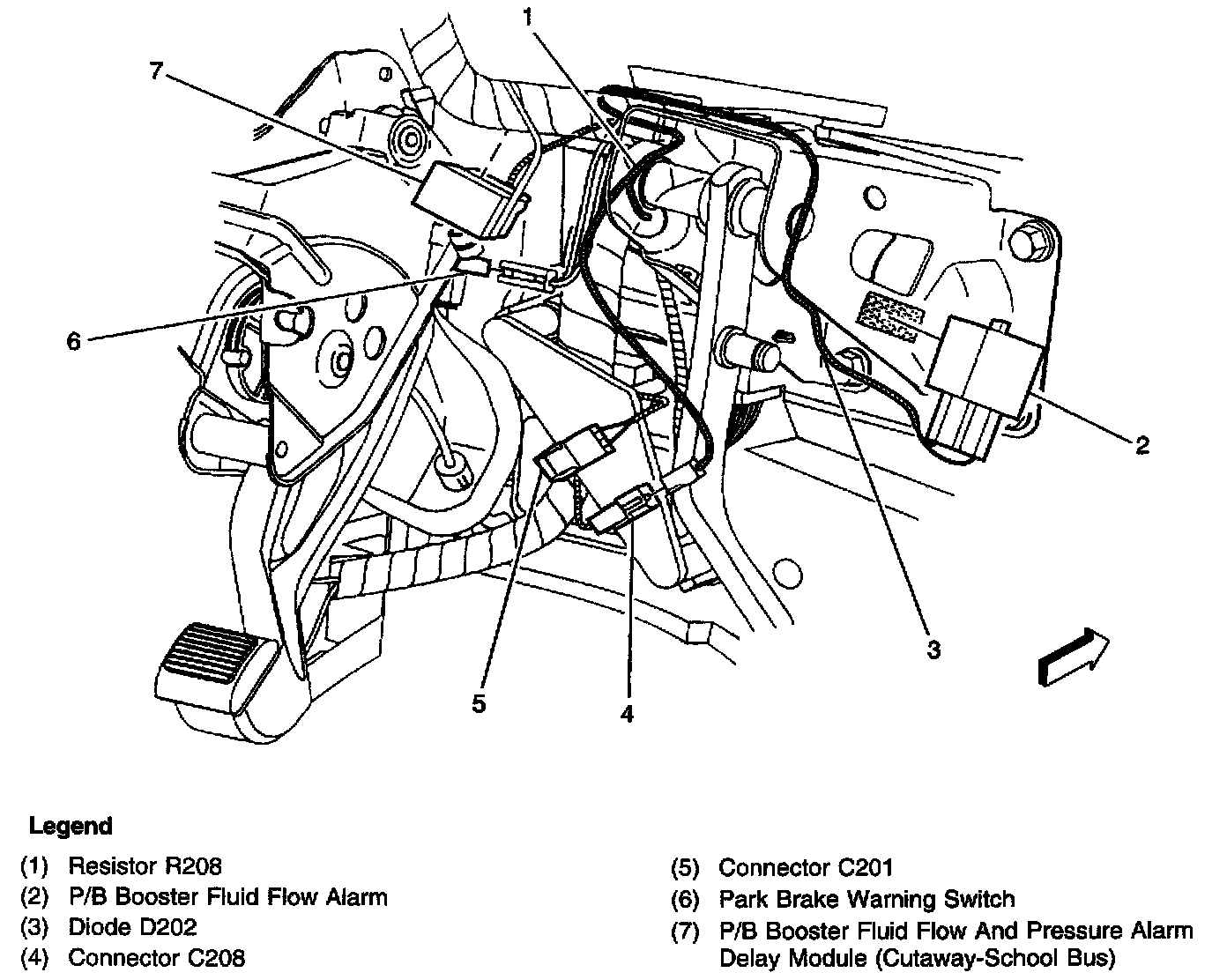

Harness Routing Views (Power Brake Fluid Flow Alarm And Module):
