Oxygen Sensor Wiring
Oxygen Sensor Wiring

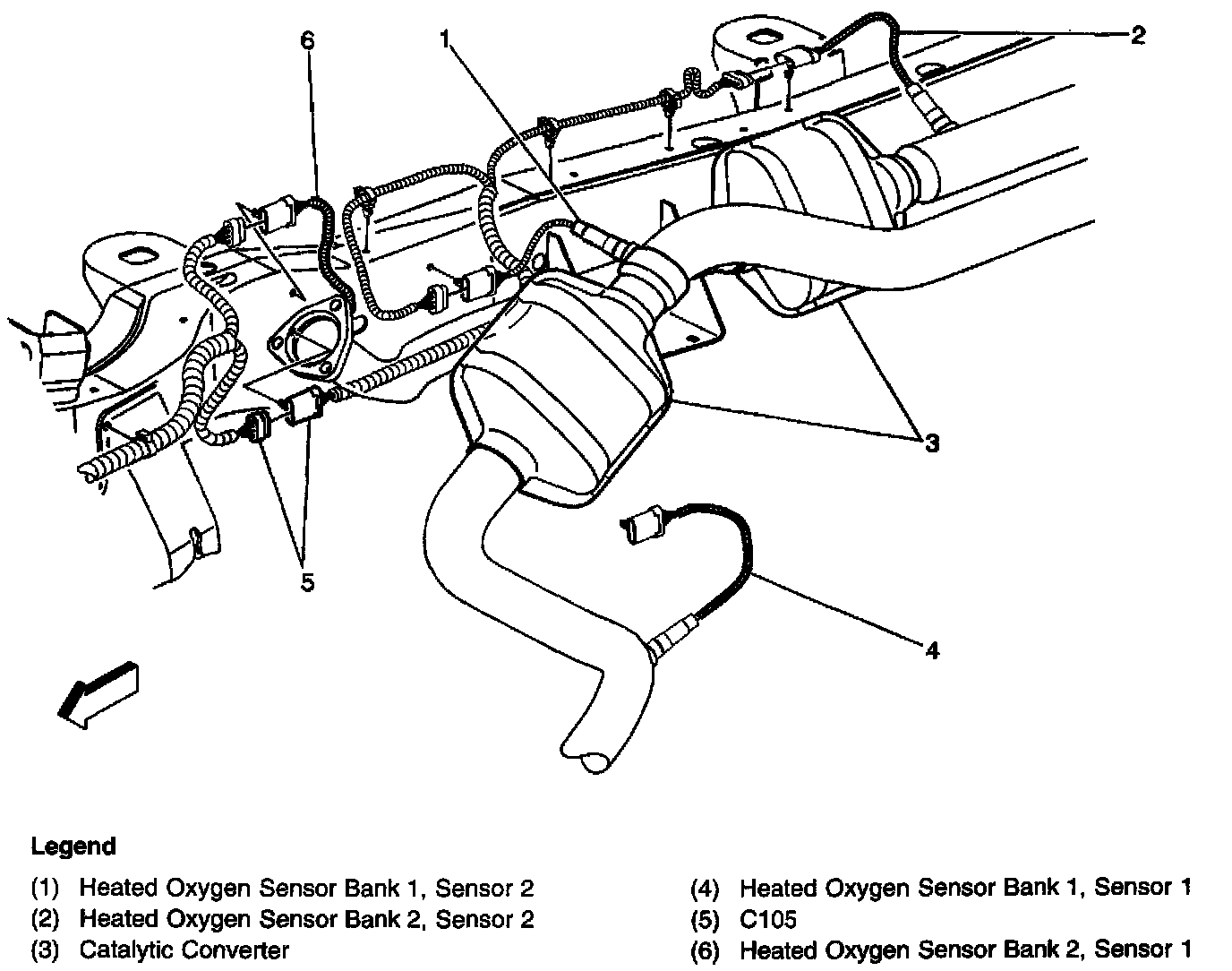

Harness Routing Views (Oxygen Sensor Wiring (5.0L, 5.7L, 7.4L Engines):
