Engine, Top Right Side

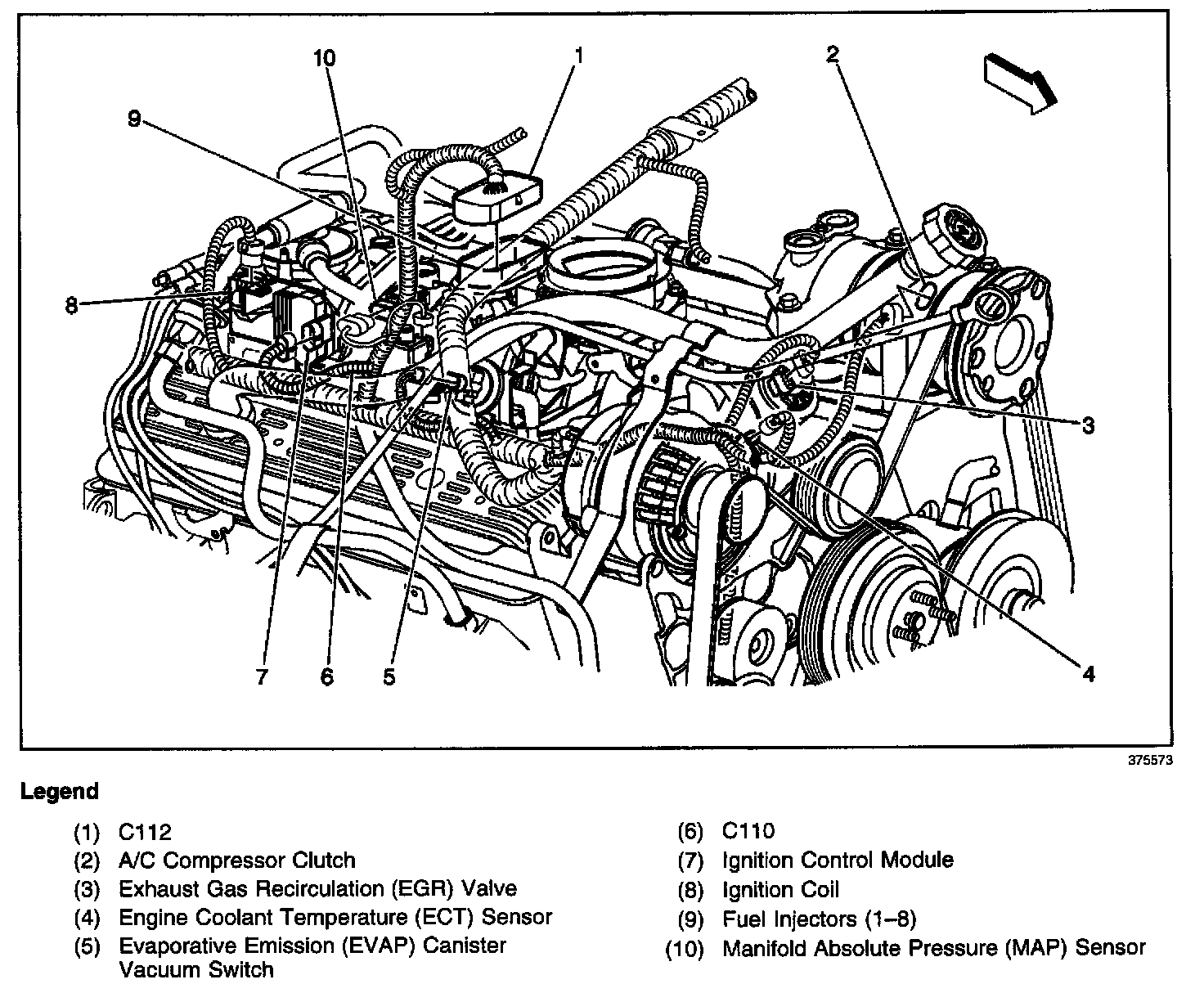

Harness Routing Views (Engine, Upper RH Side (5.0L, 5.7L)):

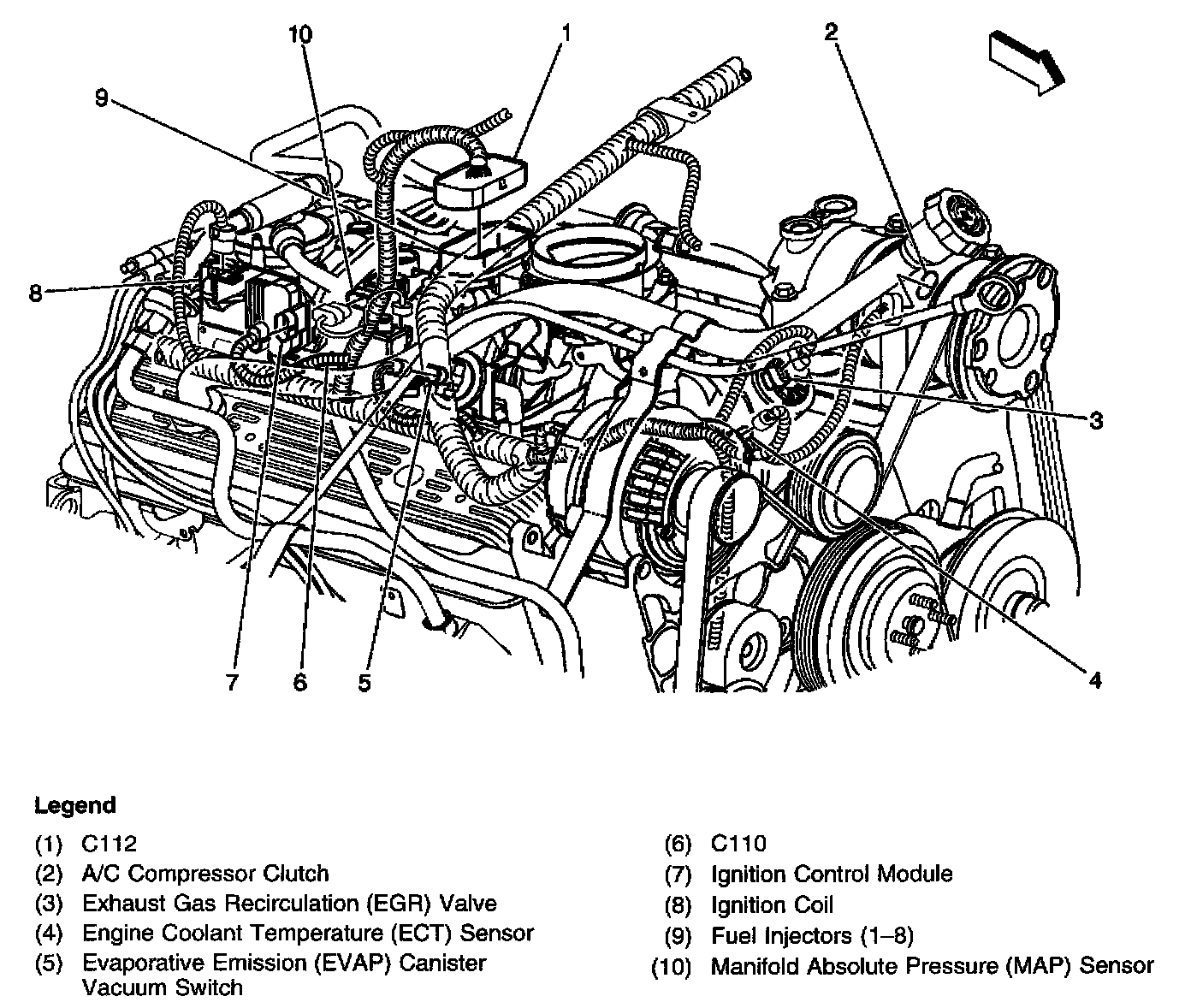

Engine, Upper RH Side:
