FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Auxiliary Heater and A/C Wiring
Auxiliary Heater and A/C Wiring

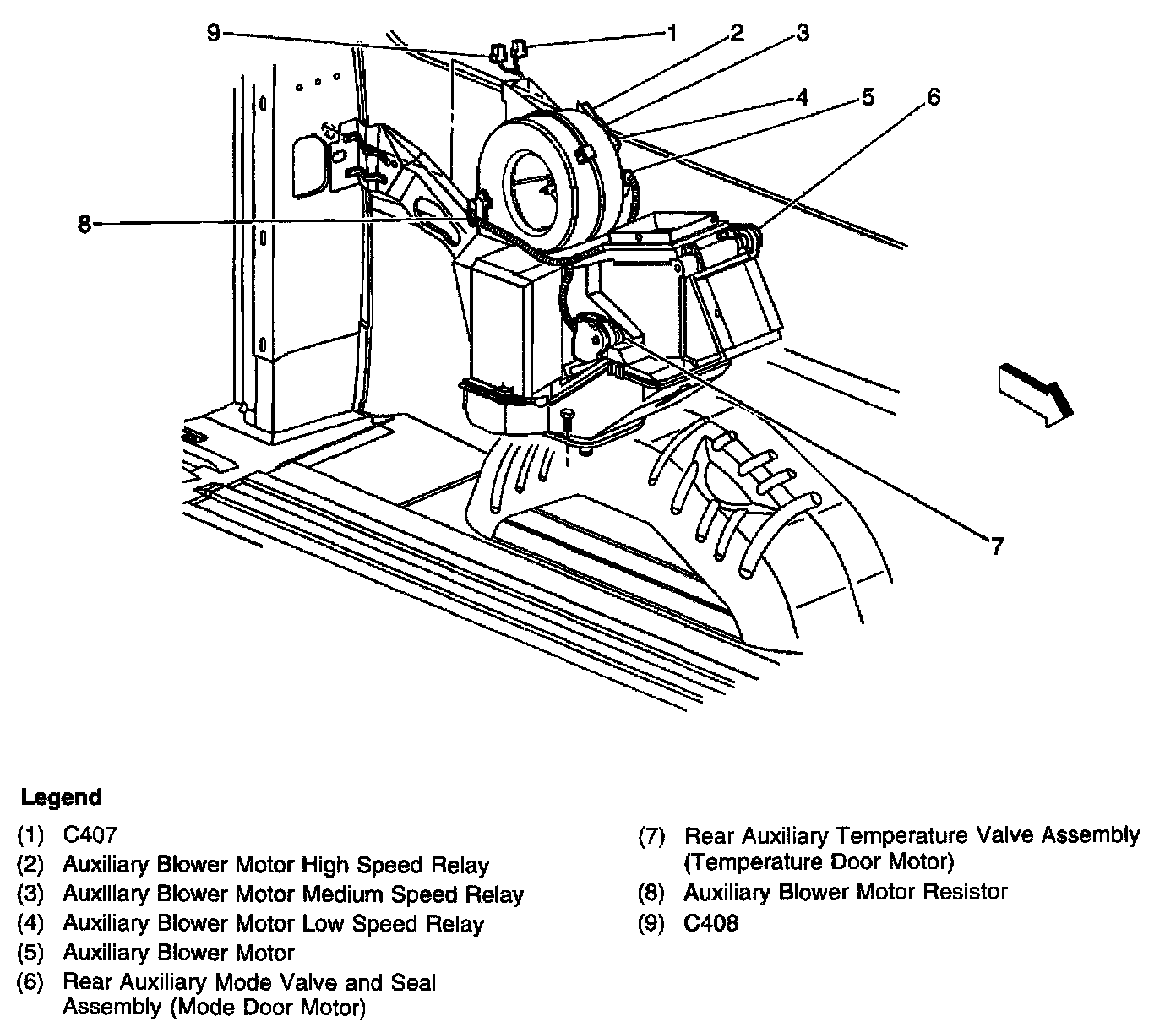

Harness Routing Views (Auxiliary Heater And A/C Wiring):
