Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Radio/Audio System Schematics
>>
PWR Antenna, Remote CD Player, and Speed Compensated Volume
PWR Antenna, Remote CD Player, and Speed Compensated Volume

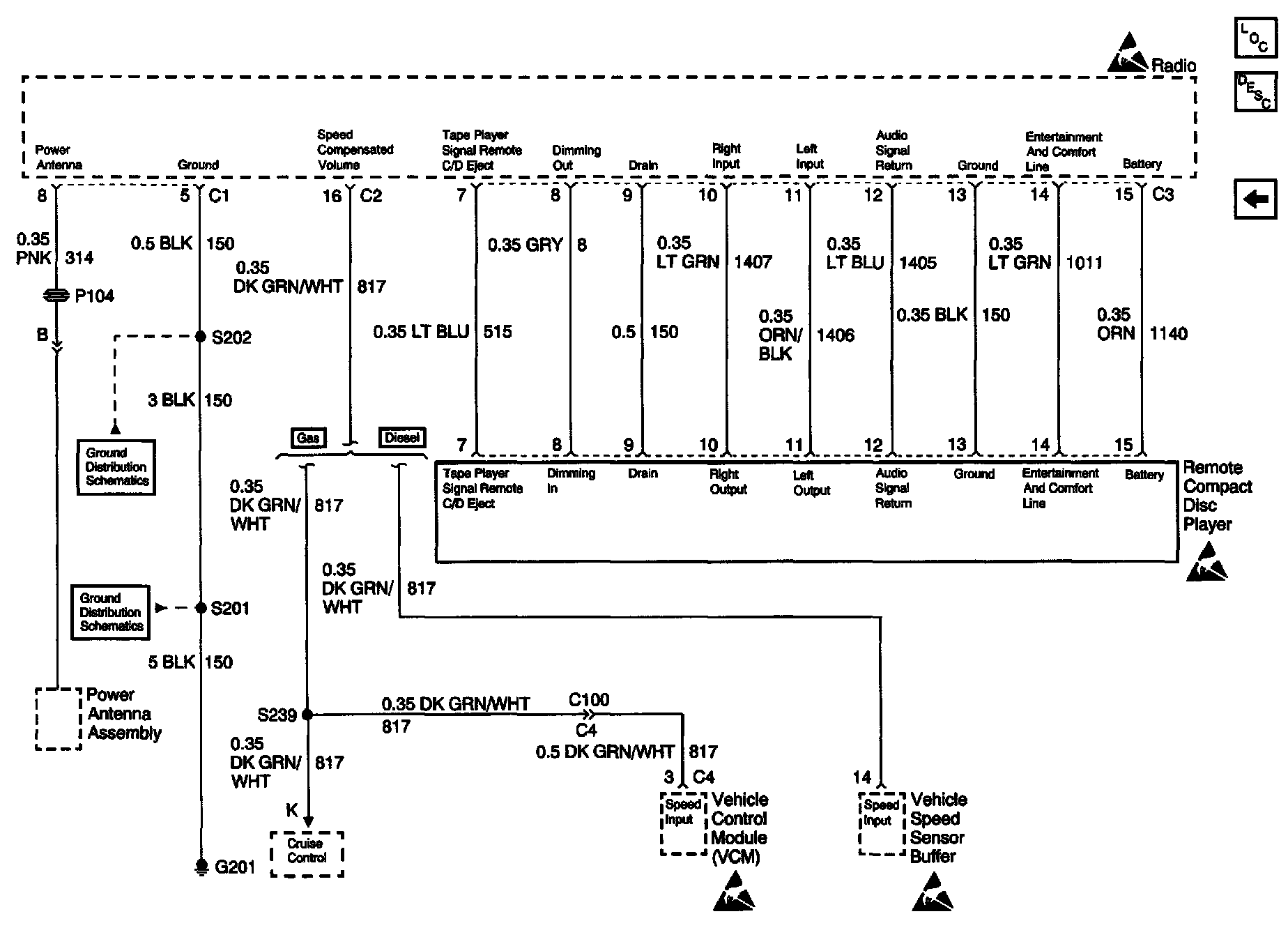

Radio/Audio System Schematics: Power Antenna, Remote Compact Disc Player, And Speed Compensated Volume:
