Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Fuel Controls >> Fuel Pump and Sender, Fuel Pump Relay, VCM

Fuel Pump and Sender, Fuel Pump Relay, VCM

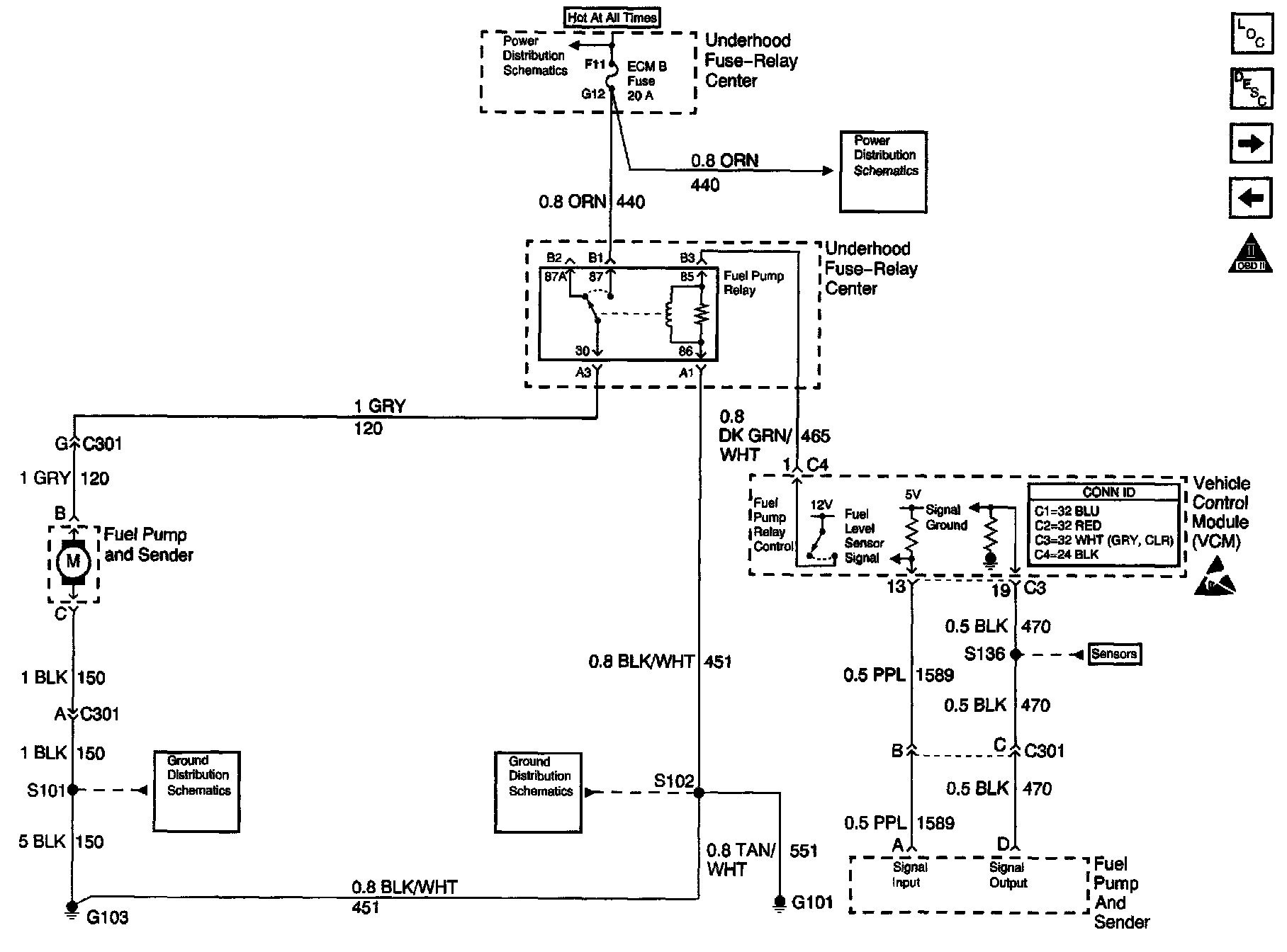

Engine Controls Schematics: Fuel Pump And Sender, Fuel Pump Relay, VCM:
