Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
>>
Vehicle Speed Sensor, IAC, and Cruise Control
Vehicle Speed Sensor, IAC, and Cruise Control

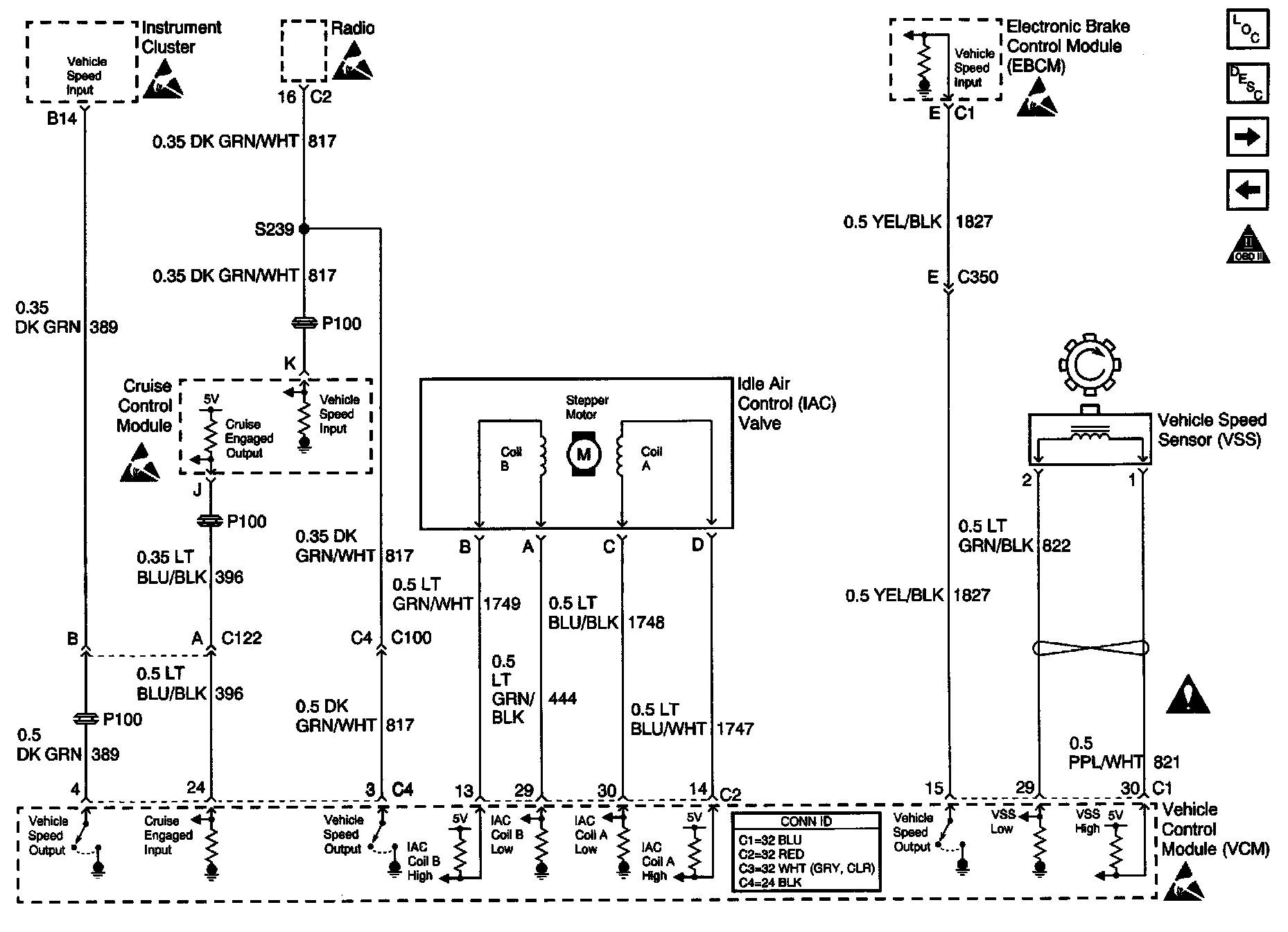

Engine Controls Schematics: Vehicle Speed Sensor, IAC, And Cruise Control:
