Engine Data Sensors

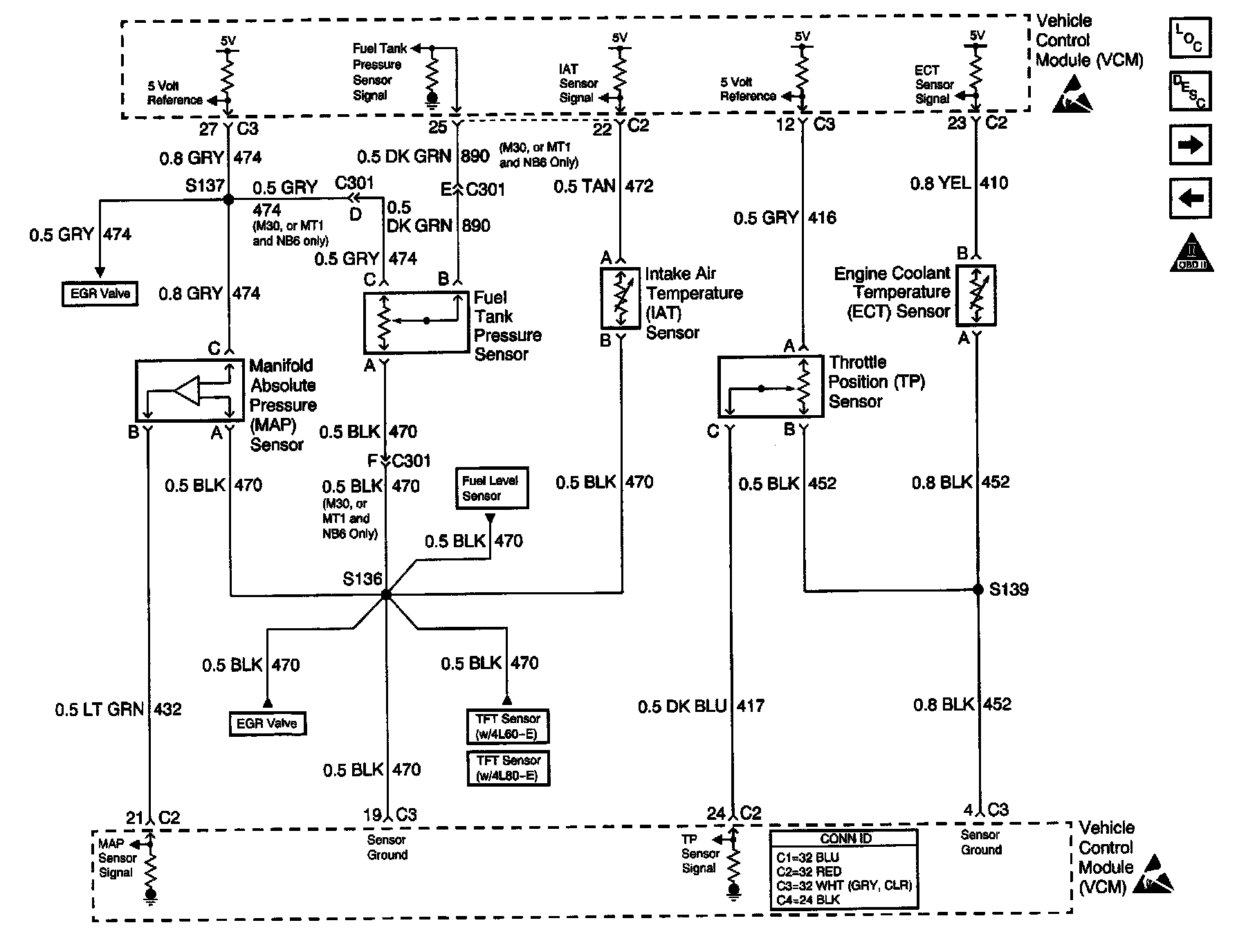

Engine Controls Schematics: Sensor Controls - MAP, Fuel Tank Pressure Sensor, IAT, TP Sensor, ECT:
