Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Class 2 Serial Data, MIL, DLC, UART

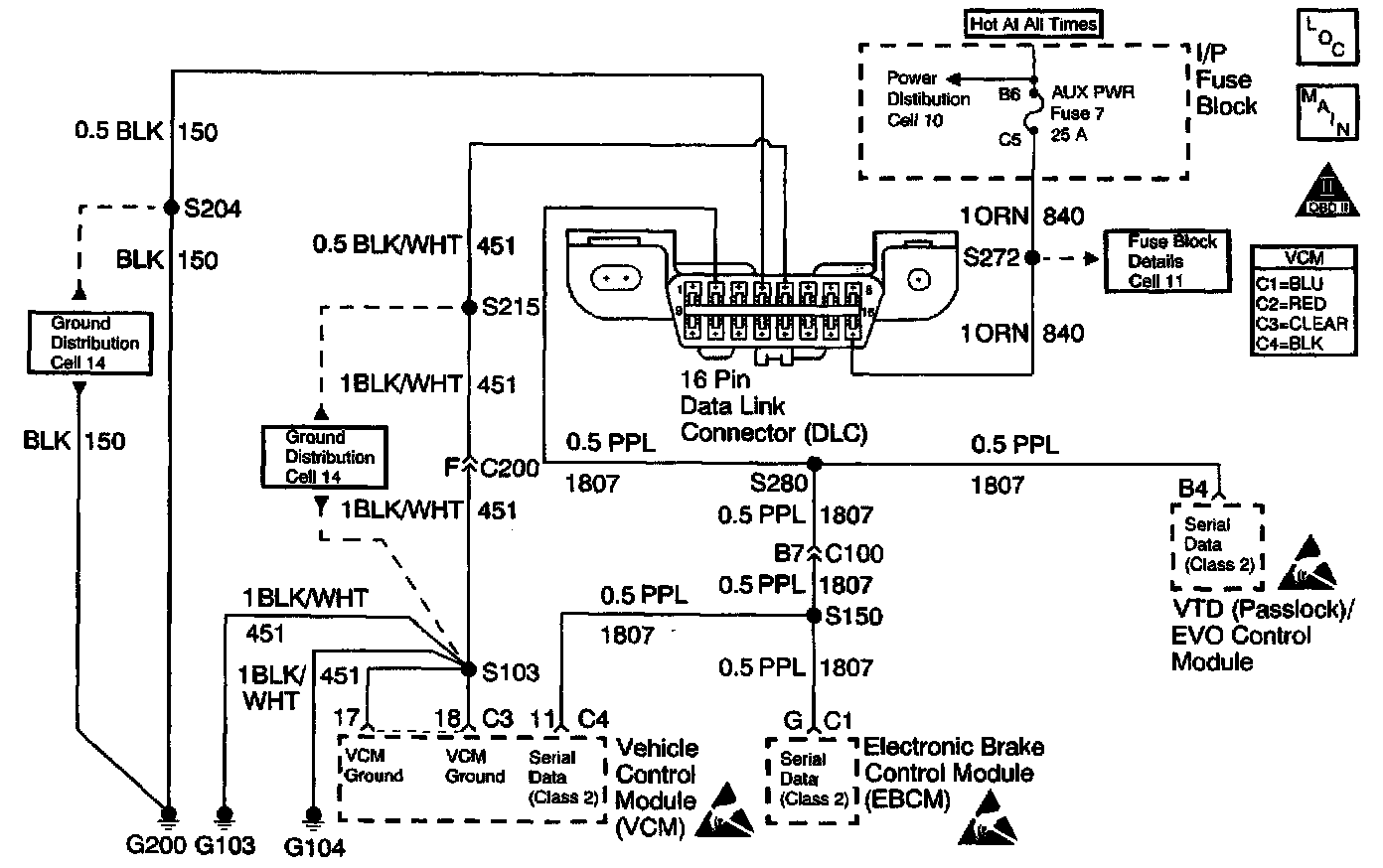

Class 2 Serial Data, MIL, DLC, UART

Schematic:
