Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Emission Controls
>>
Emission Controls (A.I.R)
Emission Controls (A.I.R)

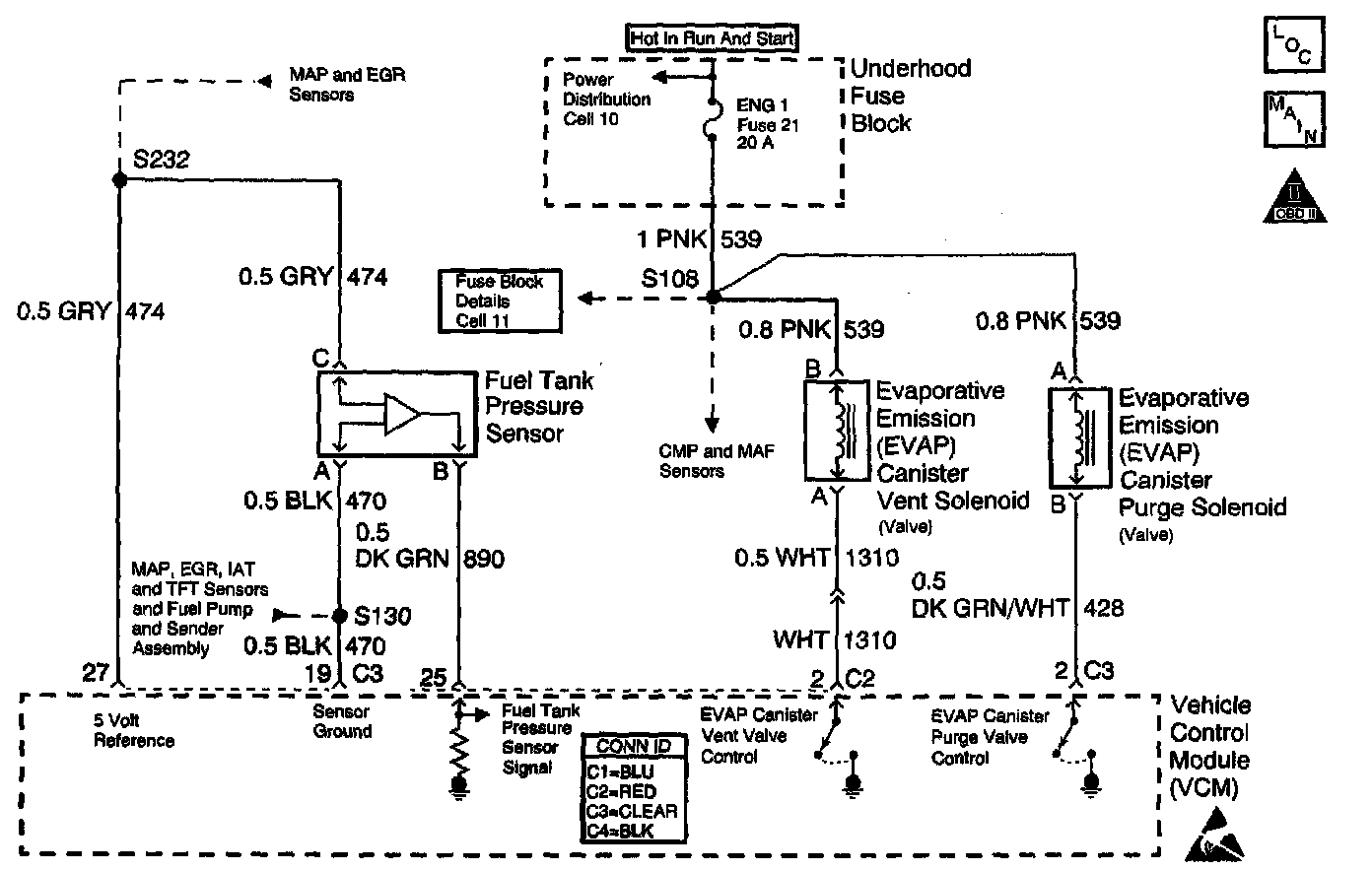

Schematic:
