Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lights
>>
Interior Lights Schematics
>>
Sunshade, Ashtray, and IP Compartment Lamps
Sunshade, Ashtray, and IP Compartment Lamps

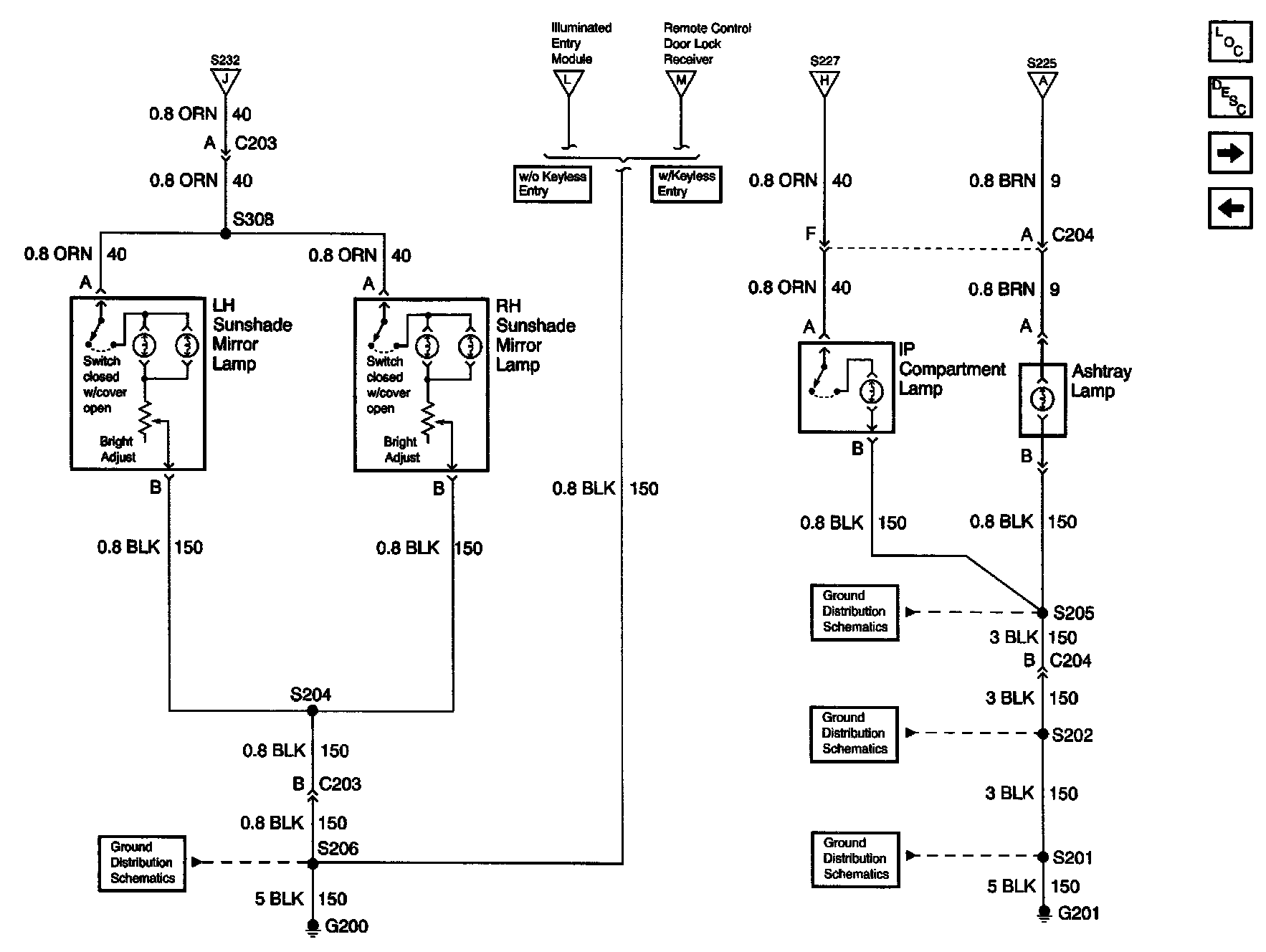

Interior Lights Schematics: Sunshade, Ashtray, And IP Compartment Lamps:
