Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lights
>>
Interior Lights Schematics
>>
Power Window and Lock Switch Illumination
Power Window and Lock Switch Illumination

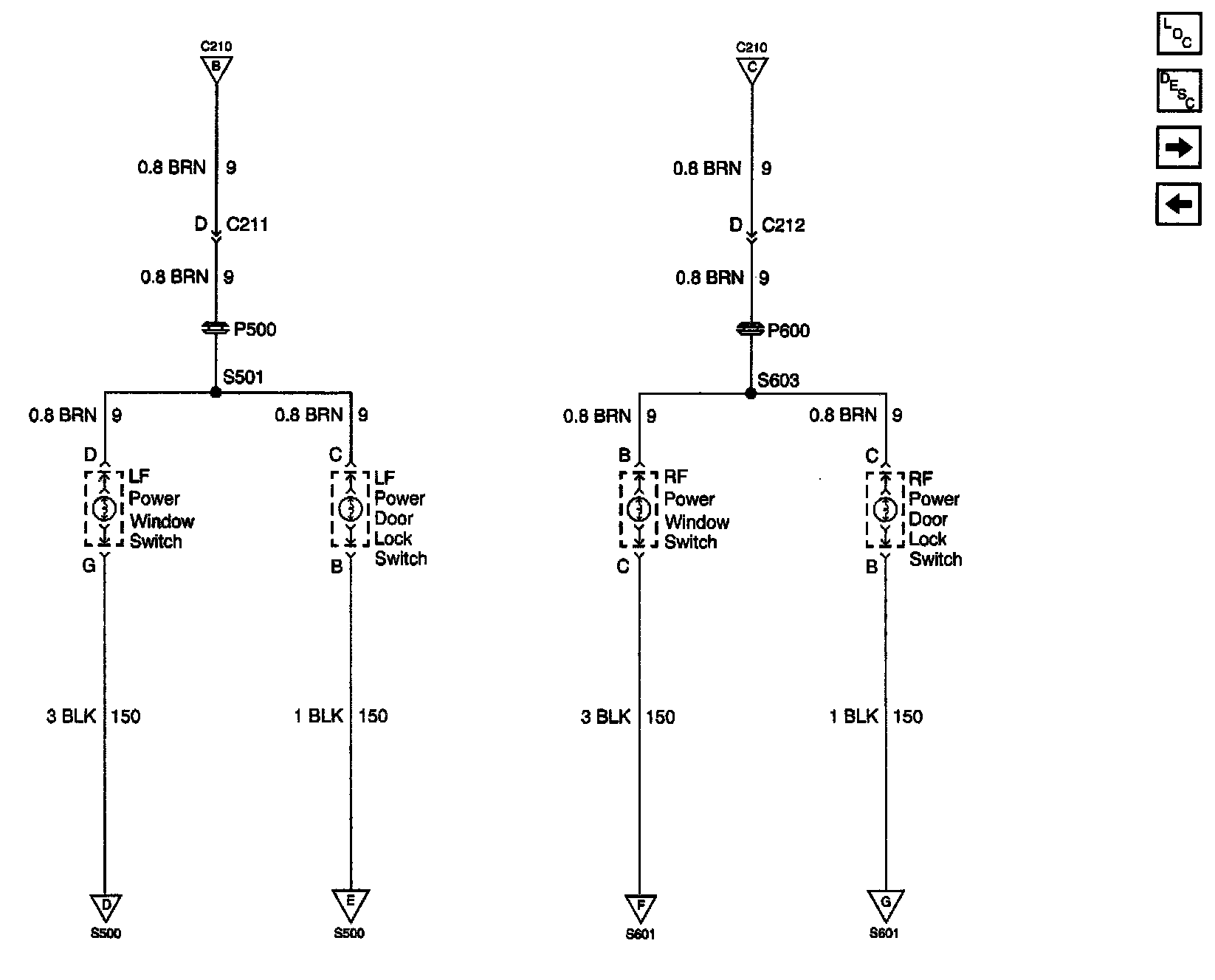

Interior Lights Schematics: Power Window And Lock Switch Illumination:
