PWR ACCY, GAUGES, and PARK LPS Fuses

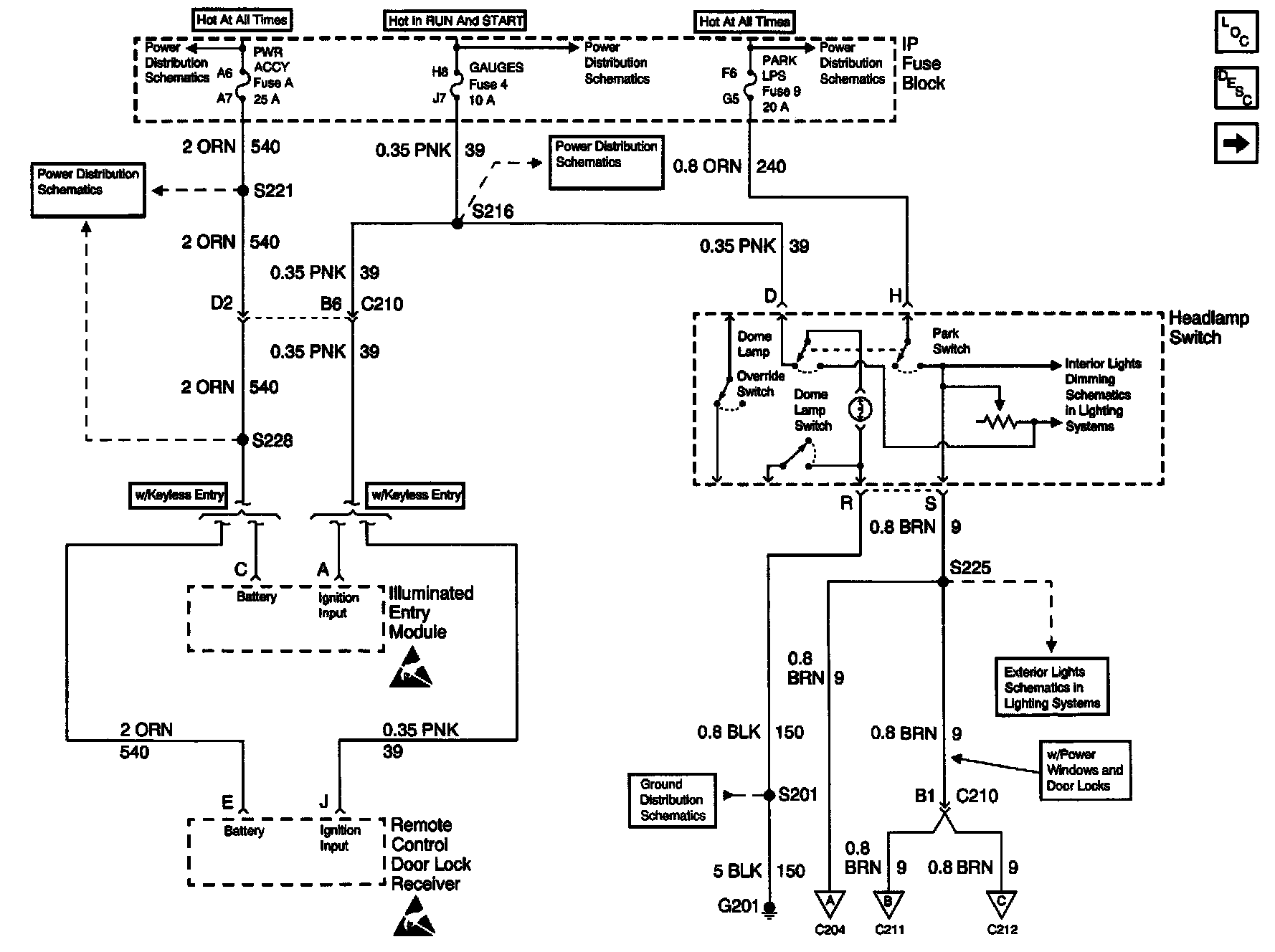

Interior Lights Schematics: PWR ACCY, GAUGES, And PARK LPS Fuses:
