Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Schematics >> CTSY Fuse

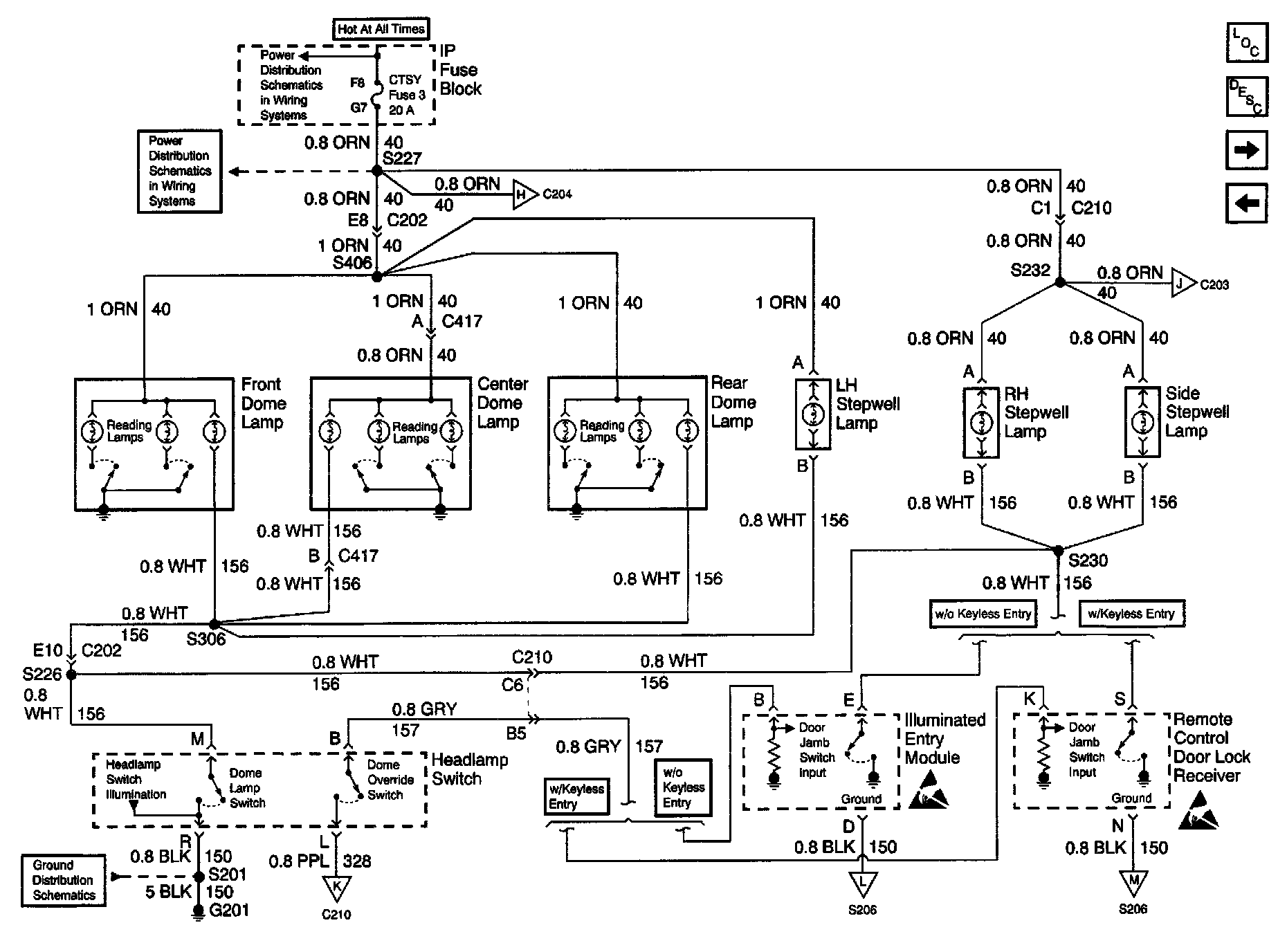

CTSY Fuse

Interior Lights Schematics: CTSY Fuse:
