Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Dimming Schematics >> ILLUM And PARK LPS Fuses

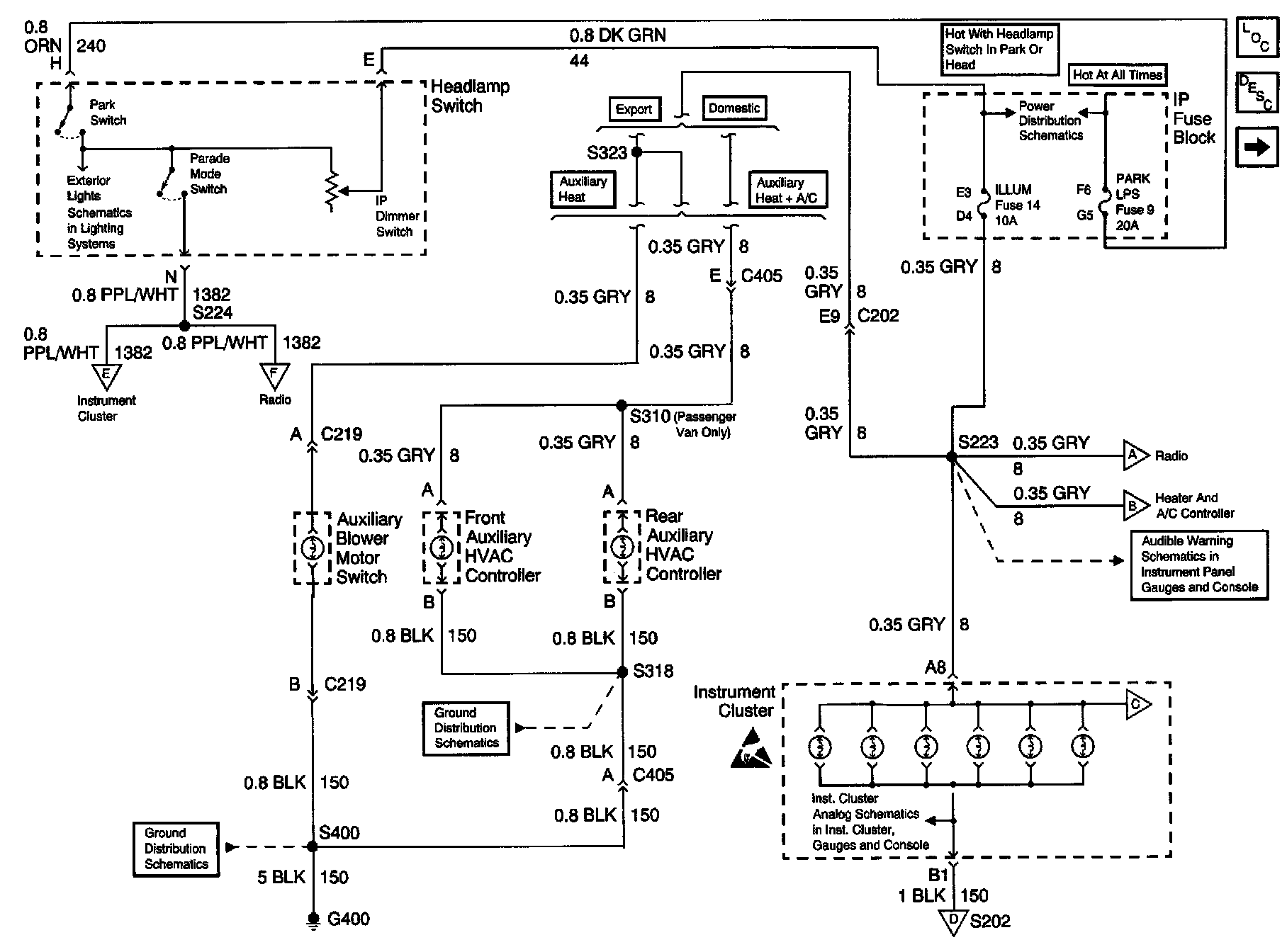

ILLUM And PARK LPS Fuses

Interior Lights Dimming Schematics: ILLUM and PARK LPS Fuses:
