TailLPS, Rear PK & Turn SIG LPS, Center HI Mounted StopLPS, License LP
TailLPS, Rear PK & Turn SIG LPS, Center HI Mounted StopLPS, License LP

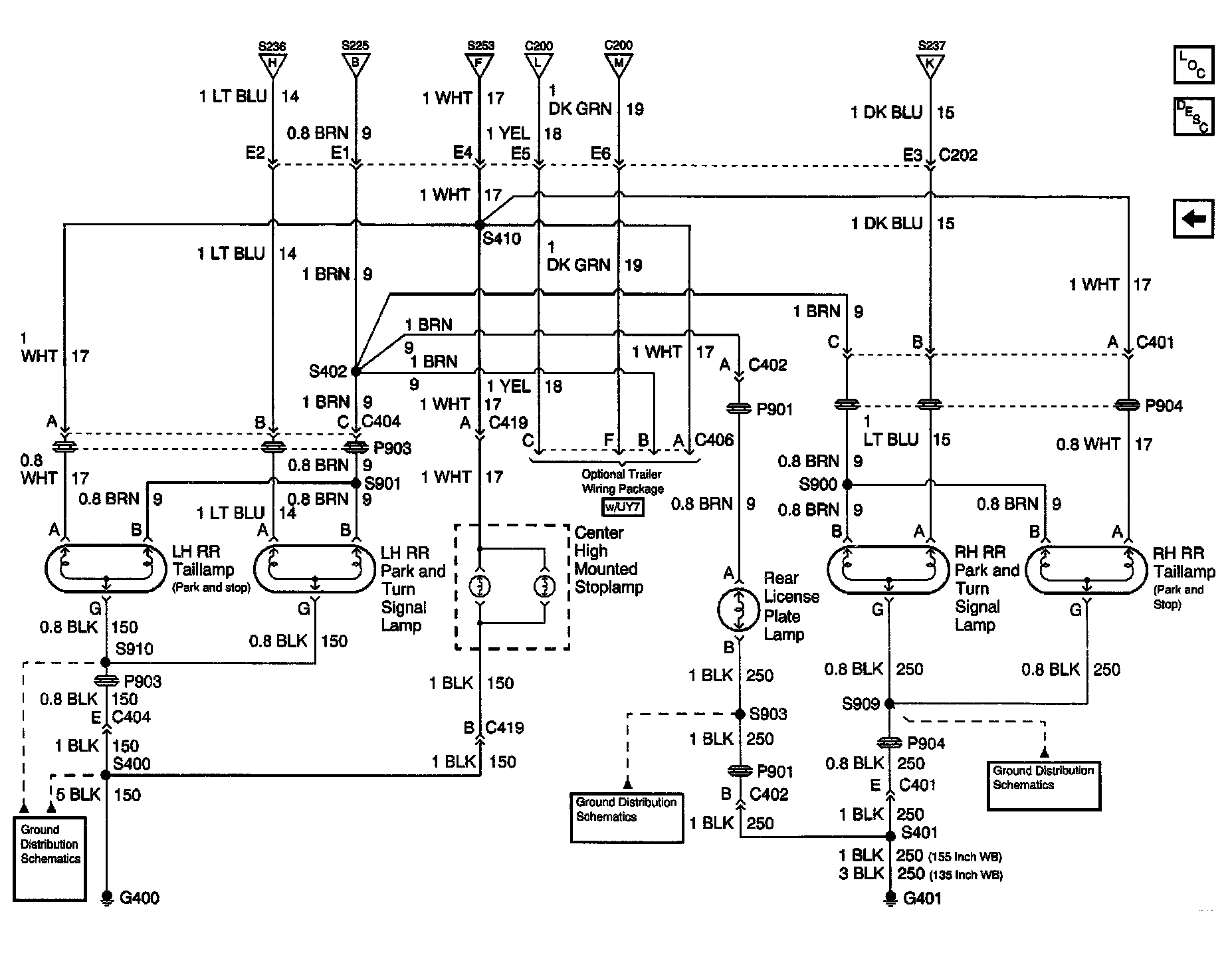

Exterior Lights Schematics (Domestic): Taillamps, Rear Park and Turn Signal Lamps, Center High Mounted Stoplamps, License Lamp:
