Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Brake Warning System Schematics >> PWR, Switch and Alarm Delay Module

PWR, Switch and Alarm Delay Module

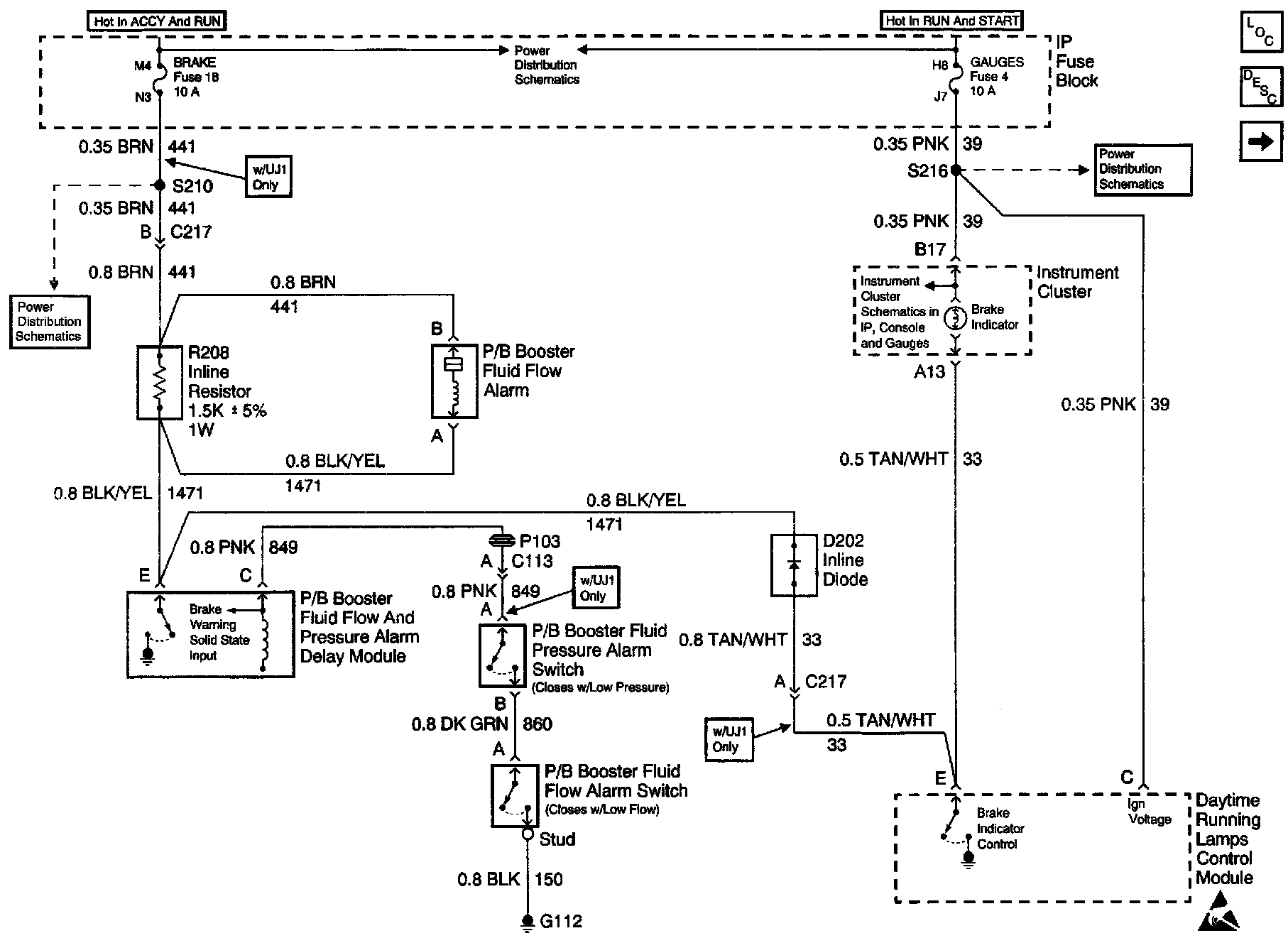

Brake Warning System Schematics: PWR, Switch And Alarm Delay Module:
