Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Audible Warning Schematics
>>
GAUGES/ILLUM/HAZARD/PARK LPS Fuses; Alarm Module; L/F Door SW
GAUGES/ILLUM/HAZARD/PARK LPS Fuses; Alarm Module; L/F Door SW

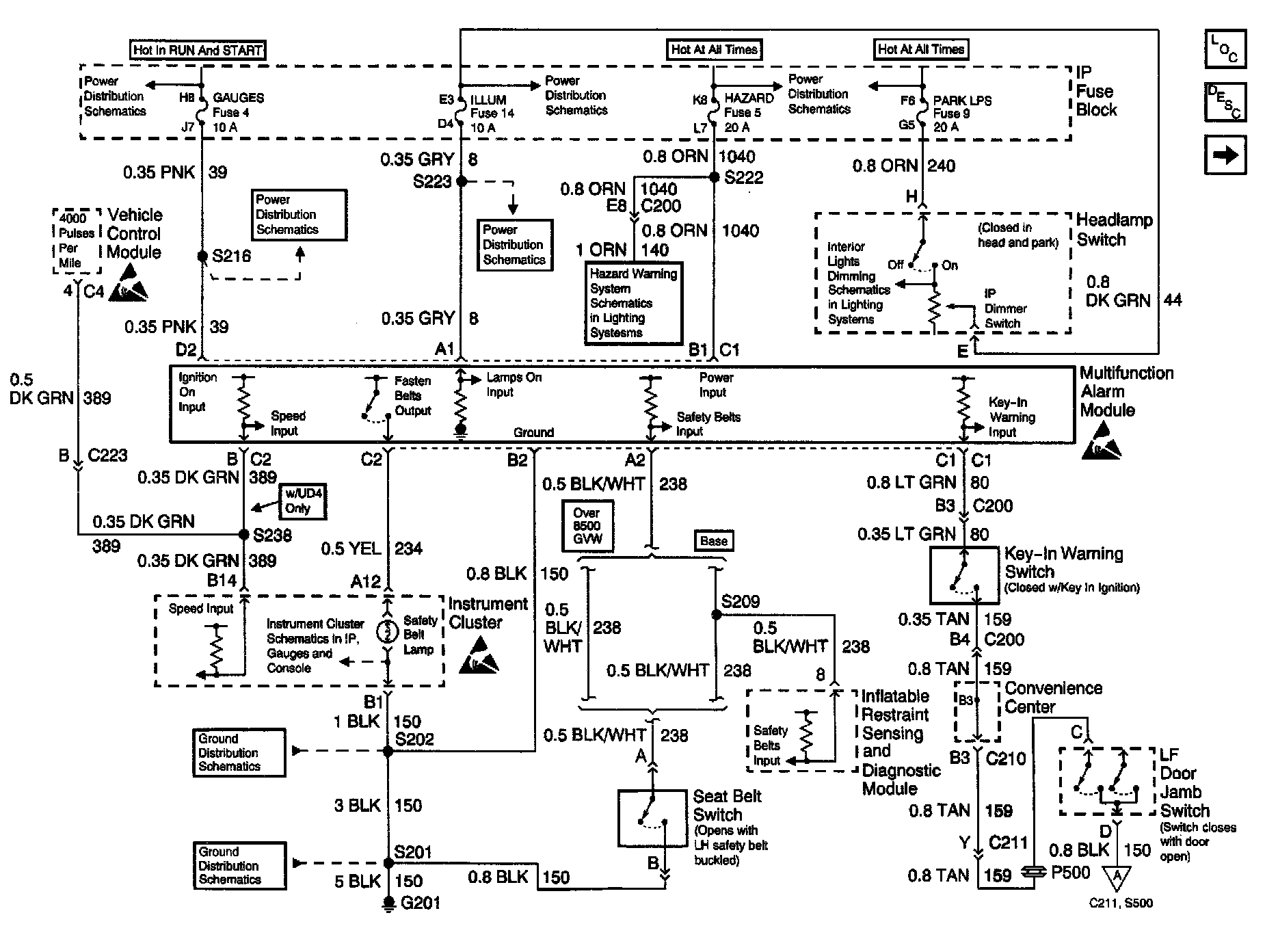

Audible Warnings Schematics: (GAUGES, ILLUM, HAZARD, PARK LPS Fuses; Multi-Function Alarm Module; Left Front Door Jamb Switch; G201):
