GAUGES/Fuel Buffer Mod./LO Coolant IND Module/LO Coolant Sen.
GAUGES/Fuel Buffer Mod./LO Coolant IND Module/LO Coolant Sen.

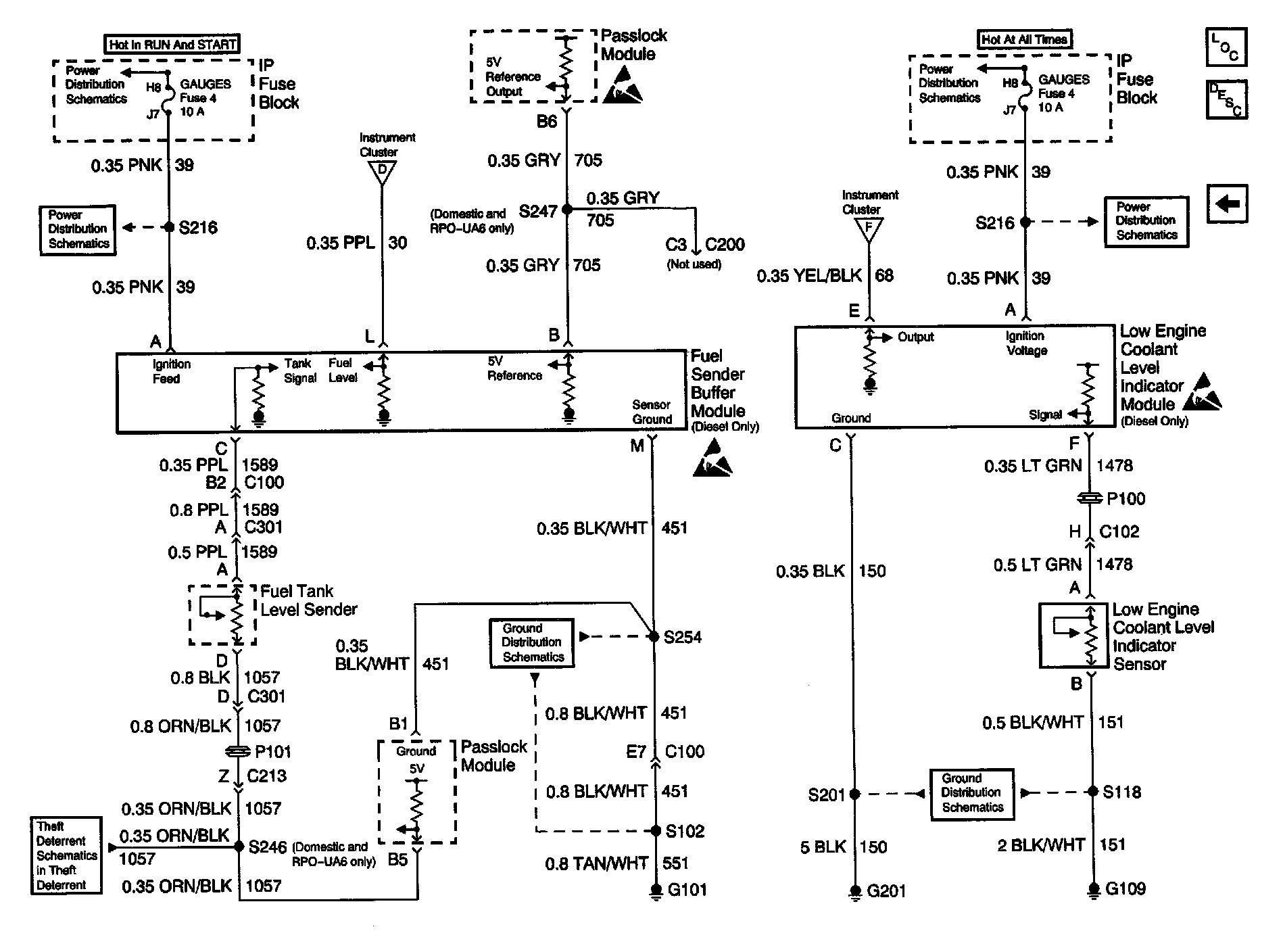

Instrument Cluster: Analog Schematics: GAUGES Fuse, Fuel Sender Buffer Module, Low Engine Coolant Level Indicator Module, Low Engine Coolant Indicator Sensor, G103, G201, G209:
