Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC Compressor Control Schematics >> HTR-A/C Fuse, A/C Compressor High Pressure Cutoff Switch, G201

HTR-A/C Fuse, A/C Compressor High Pressure Cutoff Switch, G201

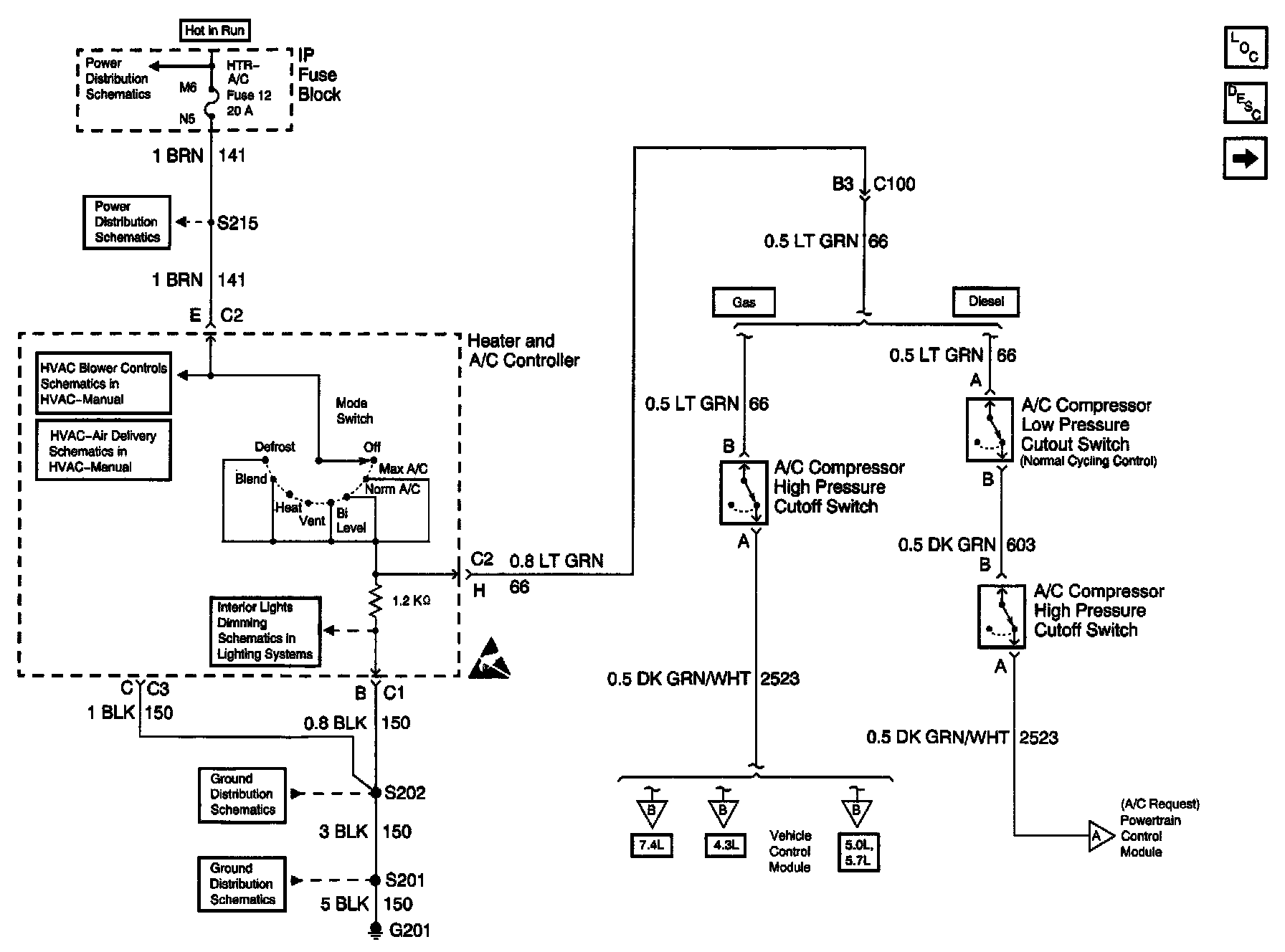

HVAC Compressor Control Schematics (HTR-A/C Fuse, A/C Compressor High Pressure Cutoff Switch, A/C Compressor Low Pressure Cutout Switch (Diesel), G201:
