Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC Compressor Control Schematics >> ECM-B/IGN-E/A/C Fuses; Comp. Clutch, A/C LO PRESS Cutout SW

ECM-B/IGN-E/A/C Fuses; Comp. Clutch, A/C LO PRESS Cutout SW

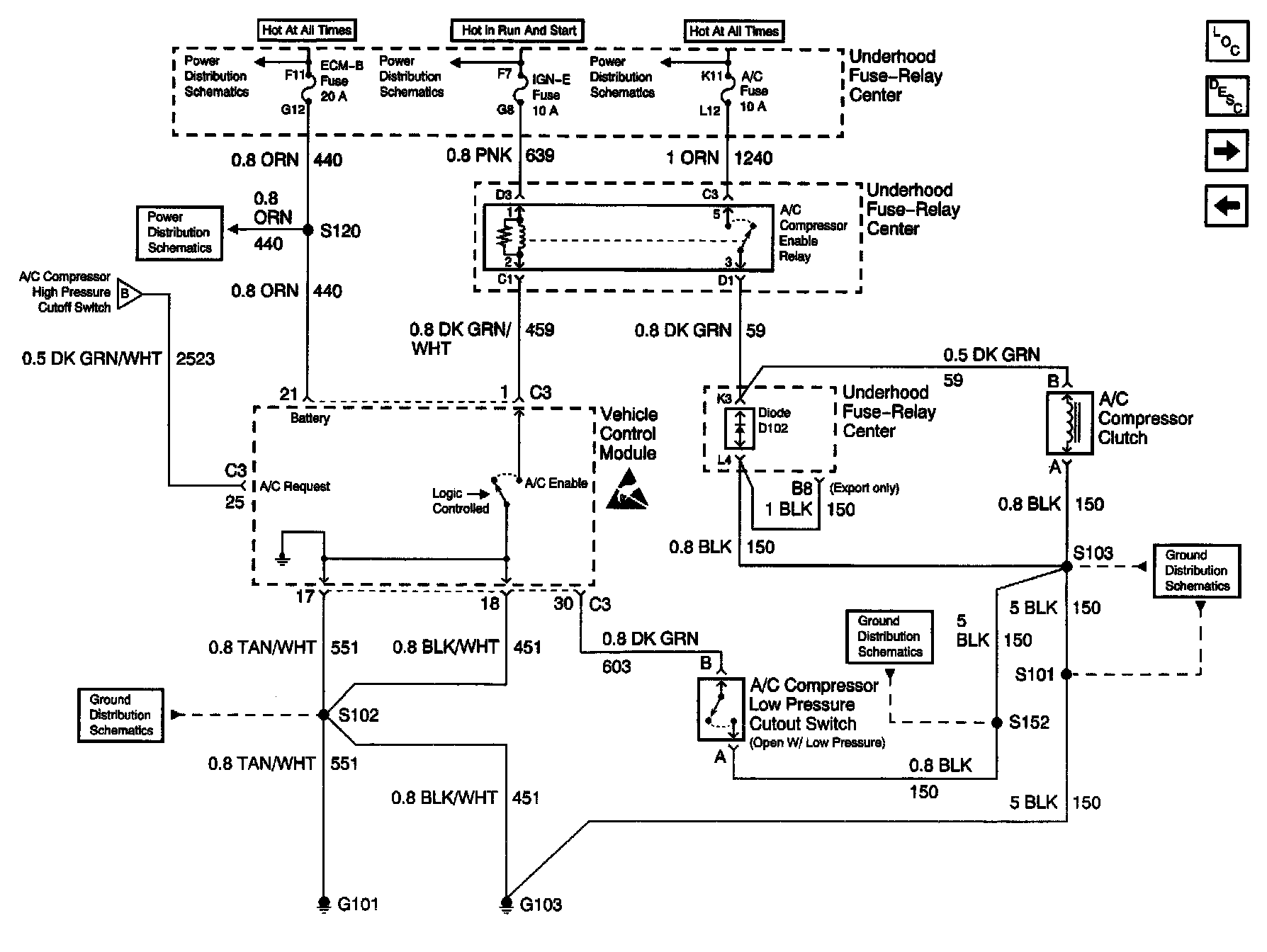

HVAC Compressor Control Schematics: ECM-B, IGN-E, A/C Fuses; Compressor Clutch, A/C Compressor Low Pressure Cutout Switch, G101, G103:
