Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC Air Delivery/Temperature Control Schematics >> Rear AUX Mode Valve and Seal ASM,Rear AUX TEMP Valve ASM, G400

Rear AUX Mode Valve and Seal ASM,Rear AUX TEMP Valve ASM, G400

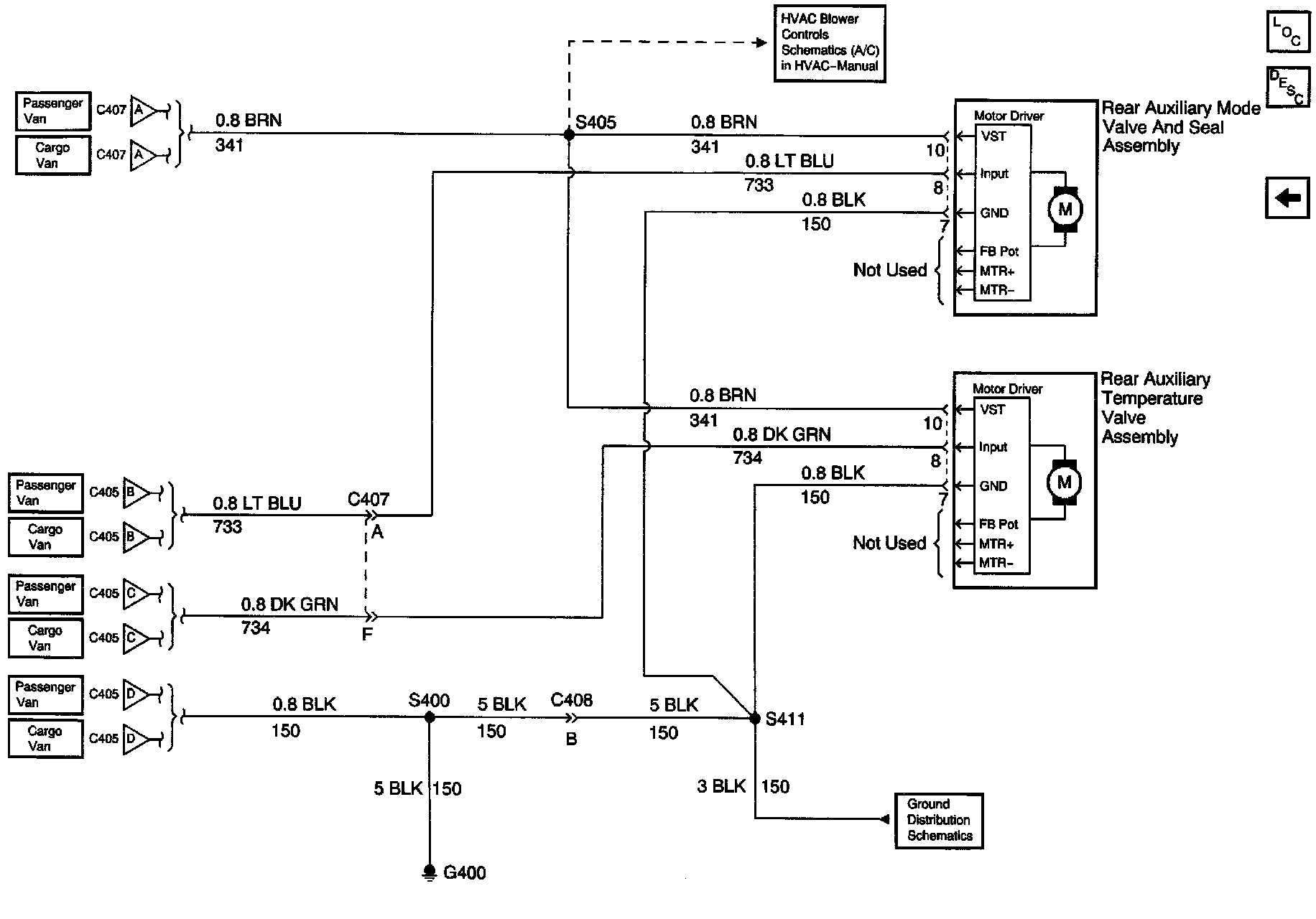

HVAC Air Delivery/Temperature Control Schematics: Rear Auxiliary Mode Valve and Seal Assembly,Rear Auxiliary Temperature Valve Assembly, G400:
