Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

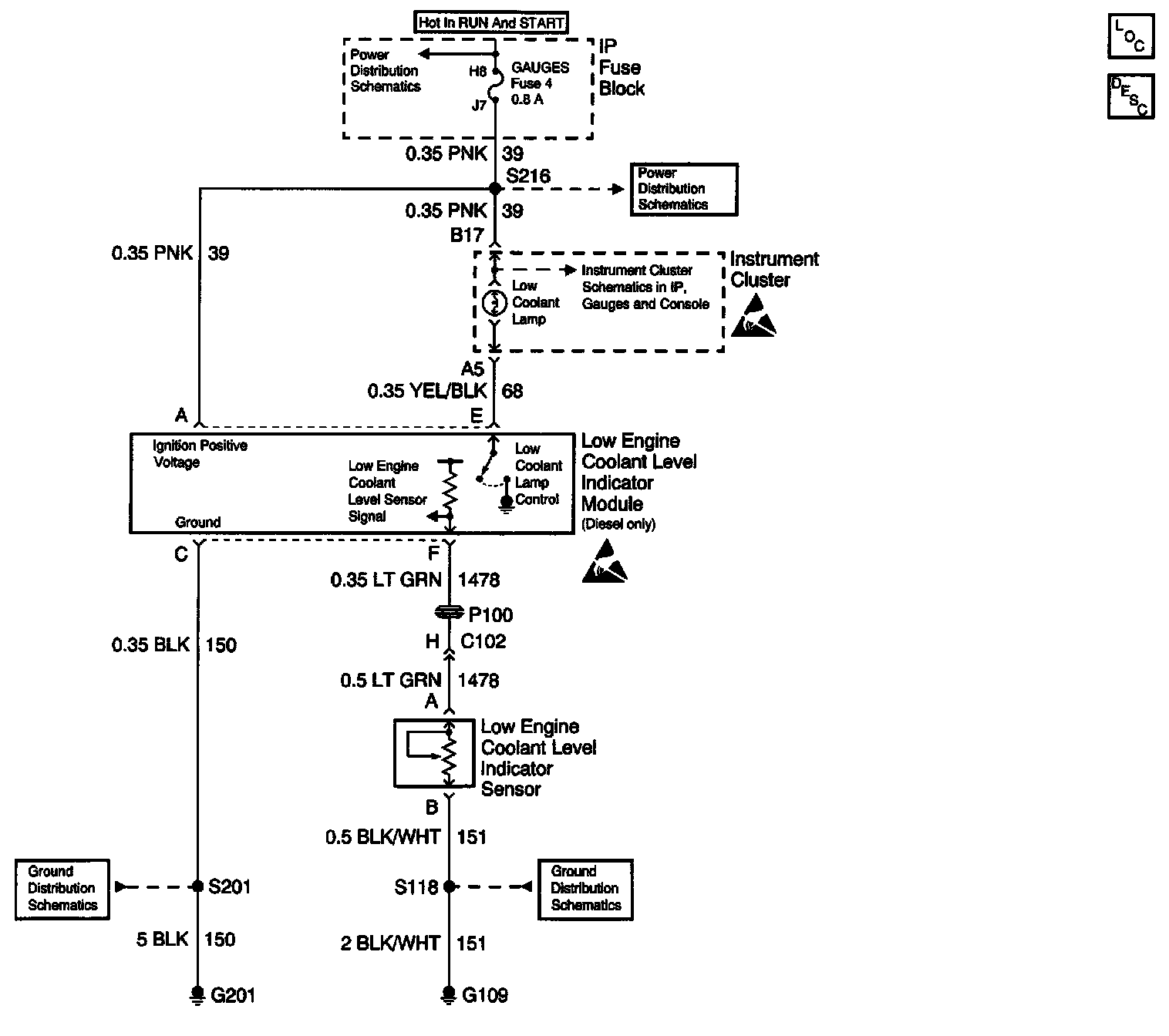

Engine Cooling Schematics: Low Engine Coolant Level Indicator Lamp, Module, Sensor, And Ground:
