Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Export
>>
Dr Lk Actuator, Side Door Contacts
Dr Lk Actuator, Side Door Contacts

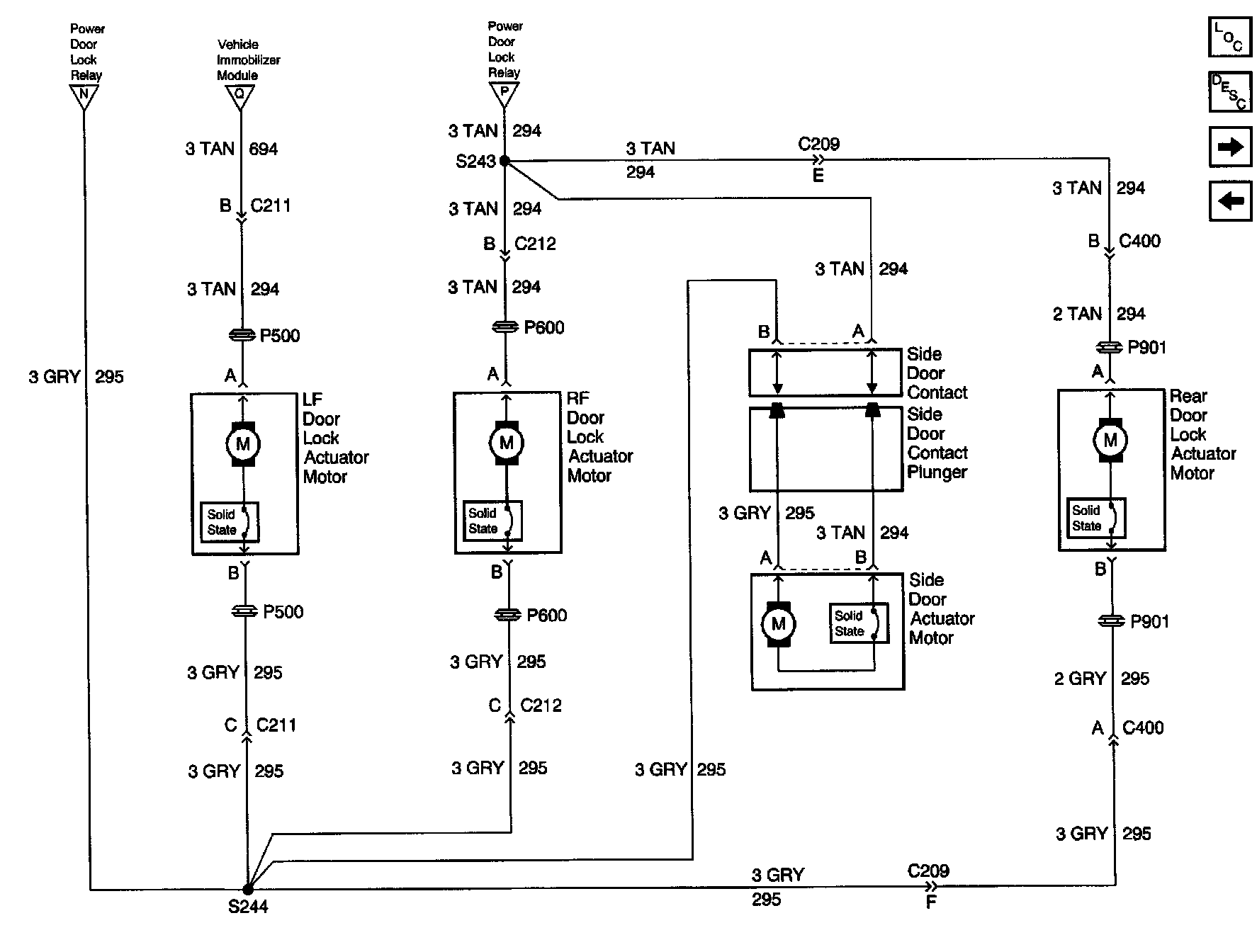

Theft Deterrent System Schematics (Export): Dr Lk Actuator, Side Door Contacts:
