VCM, ABS Lamp Relay, and VSS (Export)
VCM, ABS Lamp Relay, and VSS (Export)

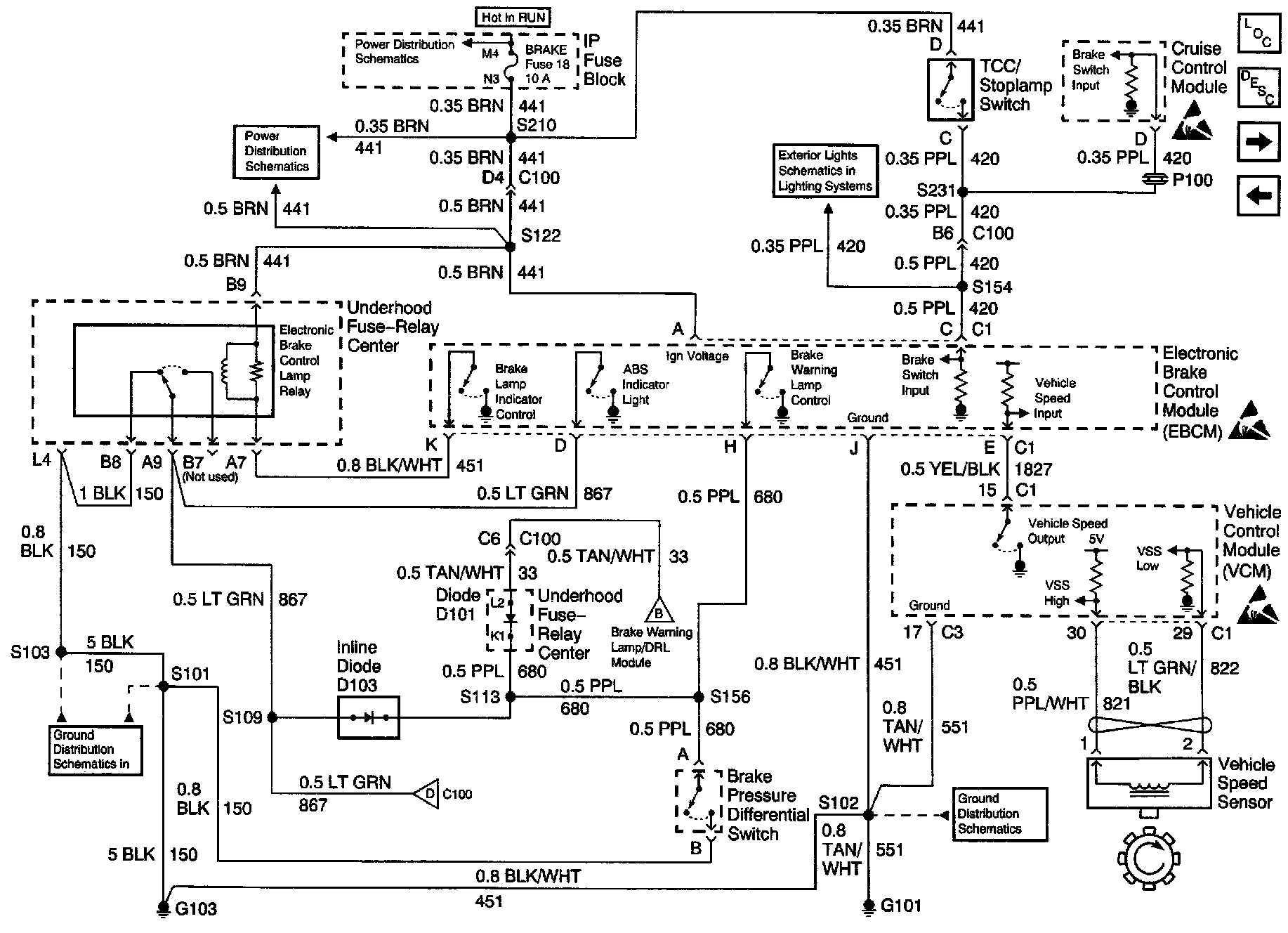

ABS Schematics (Export): ABS System Schematics (VCM, ABS Lamp Relay, And VSS (Export)):
