Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio Connector C3, With Remote CD Player

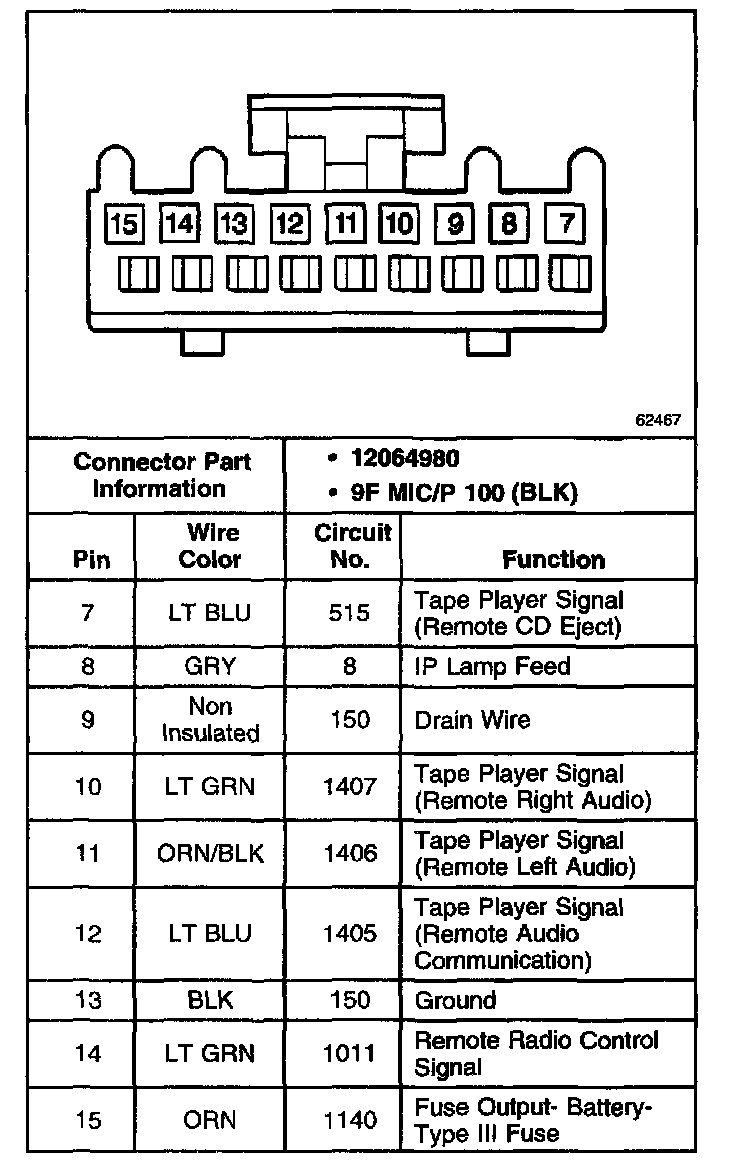

Radio Connector C3, With Remote CD Player

Radio Connector C3, With Remote CD Player:
