Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio C1 Connector
Radio C1 Connector

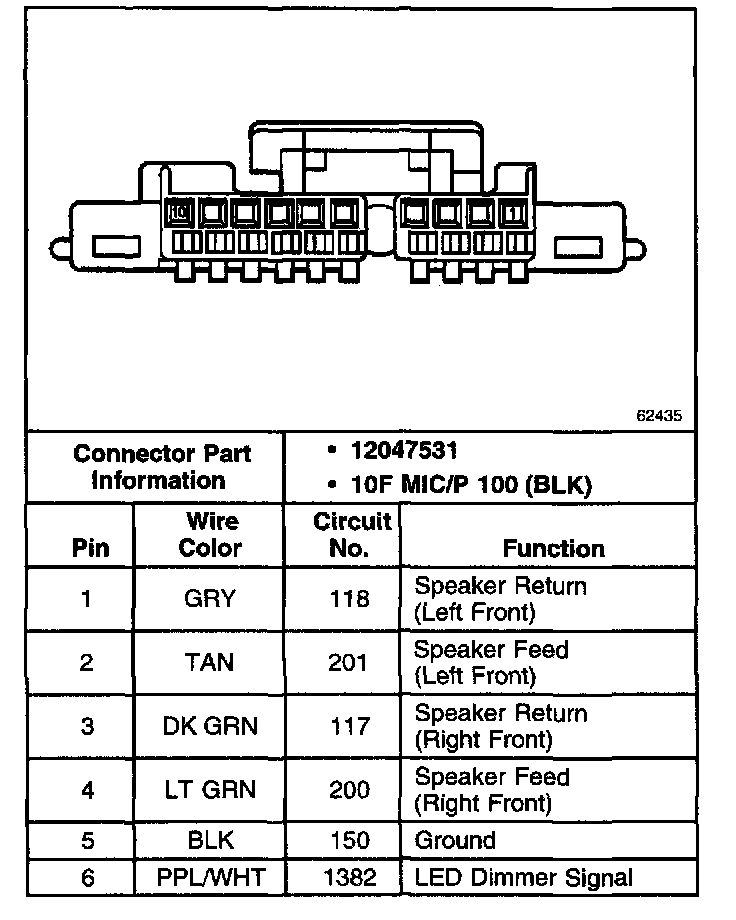

Radio C1 Connector (Part 1 Of 2):

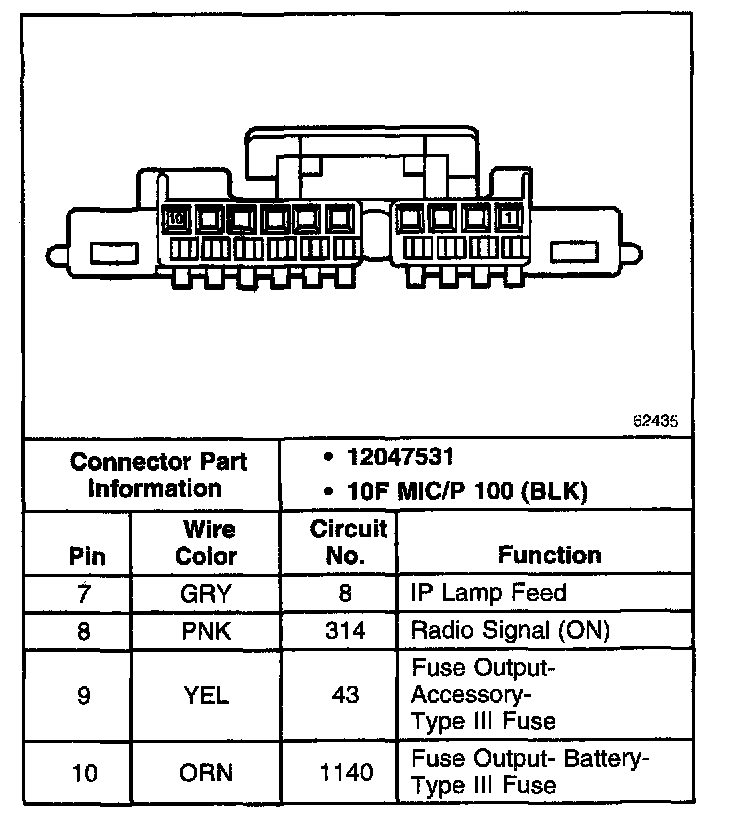

Radio C1 Connector (Part 2 Of 2):
