Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Marker Lamp >> Side Marker, Right Front, Domestic

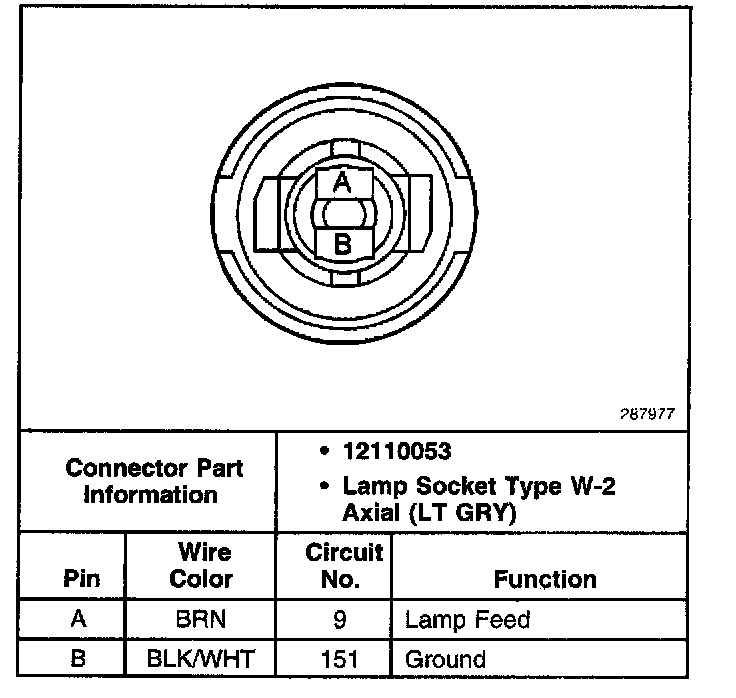

Side Marker, Right Front, Domestic

Side Marker, Right Front, Domestic:
