Rear Auxiliary Temperature Valve Assembly (Temp Door Motor)

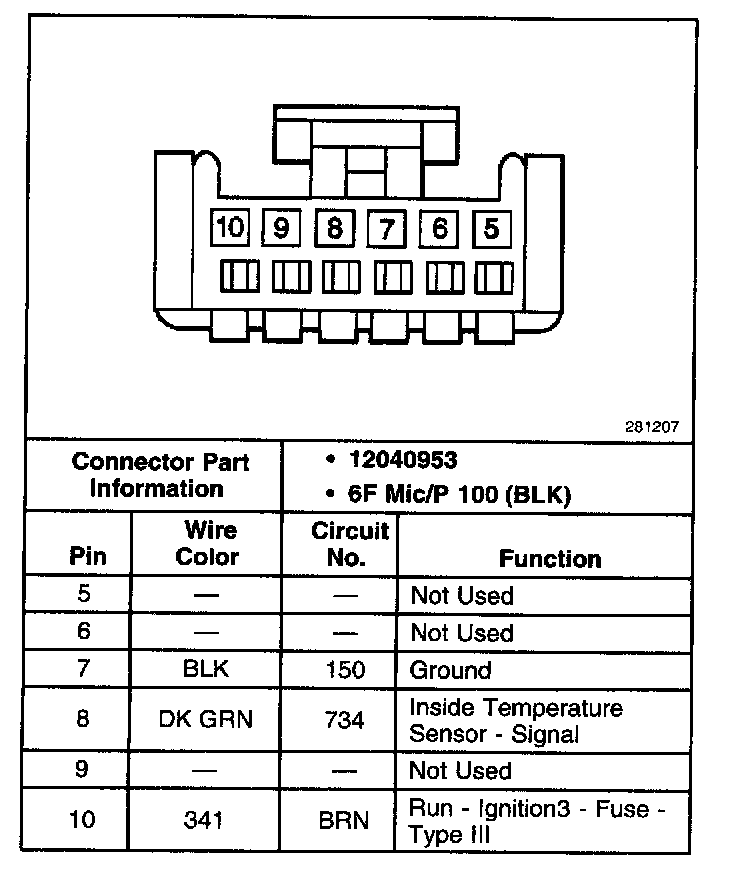

Rear Auxiliary Temperature Valve Assembly (Temperature Door Motor):
