Vehicle Speed Sensor (VSS) Buffer

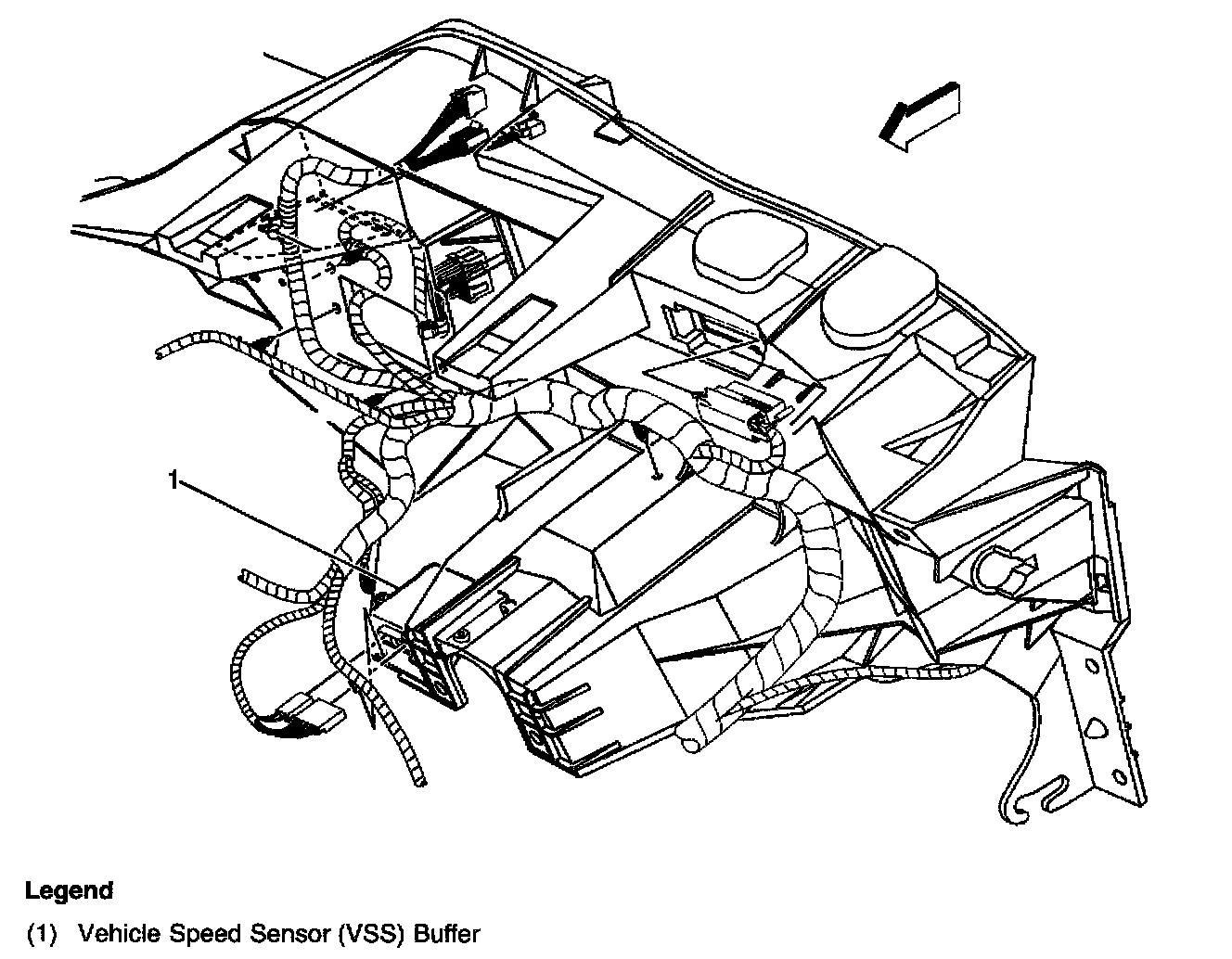

Locations View:
LH side of transmission
Below the left side of the IP, near the steering column
