Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> P/B Booster Flow & PRESS Alarm Delay Mod (Cutaway-School Bus)

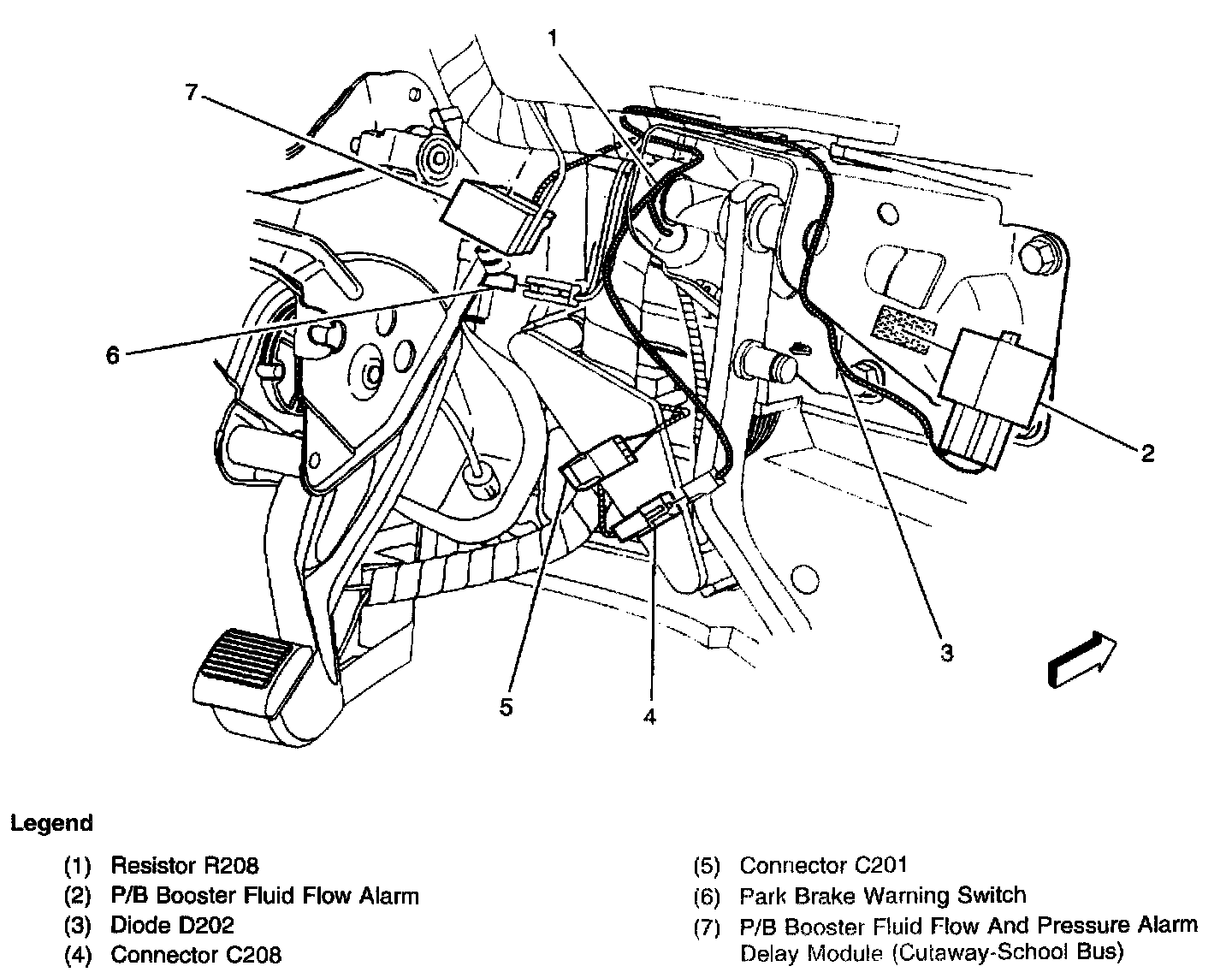

P/B Booster Flow & PRESS Alarm Delay Mod (Cutaway-School Bus)

Locations View:
