Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

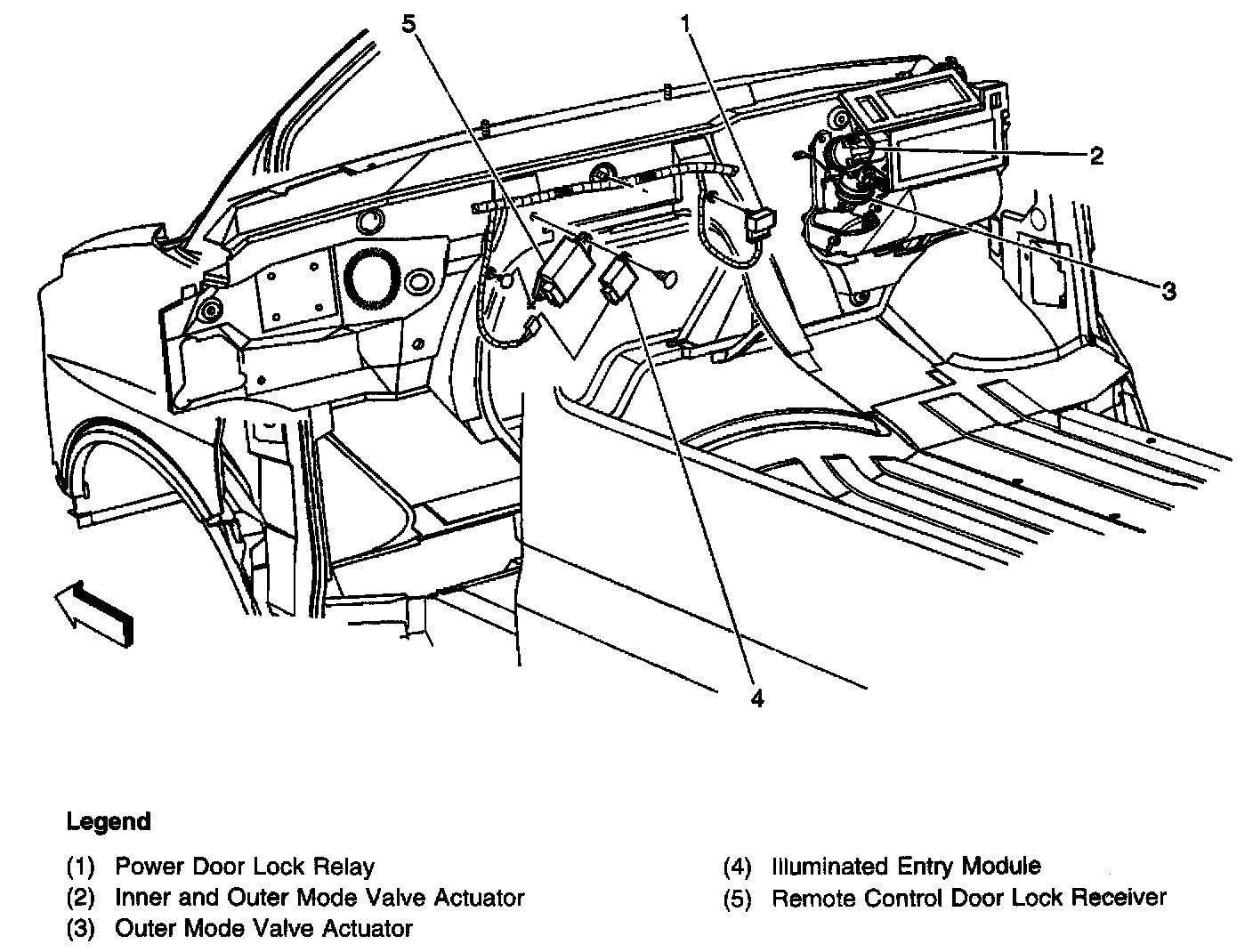

Remote Control Door Lock Receiver
Remote Control Door Lock Receiver
Locations View:
Attached to the cowl above the engine cover
Behind the IP, in the center of the bulkhead
