Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Lamps
>>
License Plate Lamp, Rear
License Plate Lamp, Rear

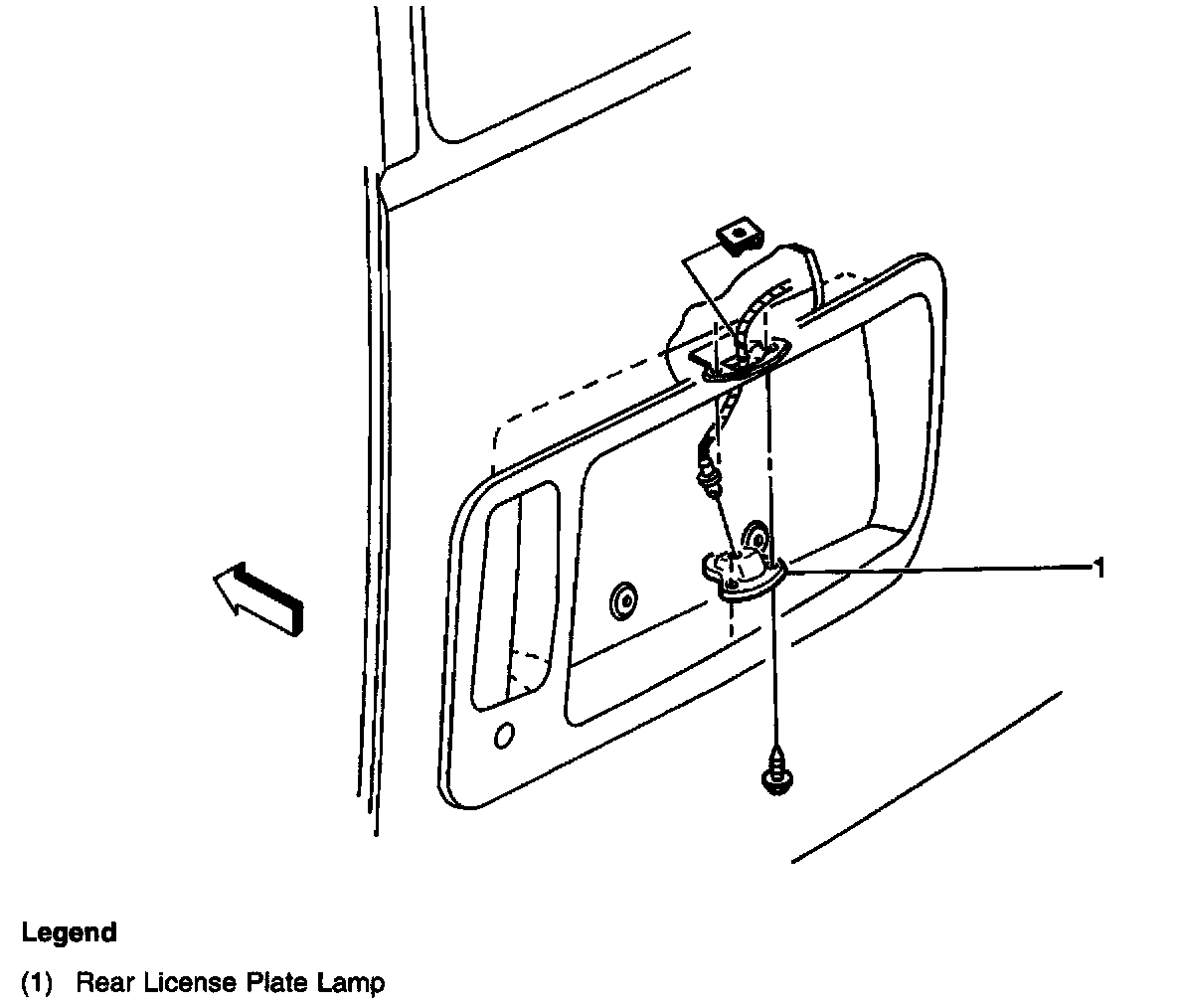

Locations View:
Locations View:
Part of the rear bumper
Rear door license plate pocket
Part of the right rear door
