Cruise Control Cable Replacement

REMOVAL PROCEDURE




1. Open the hood
2. Remove the air cleaner assembly.

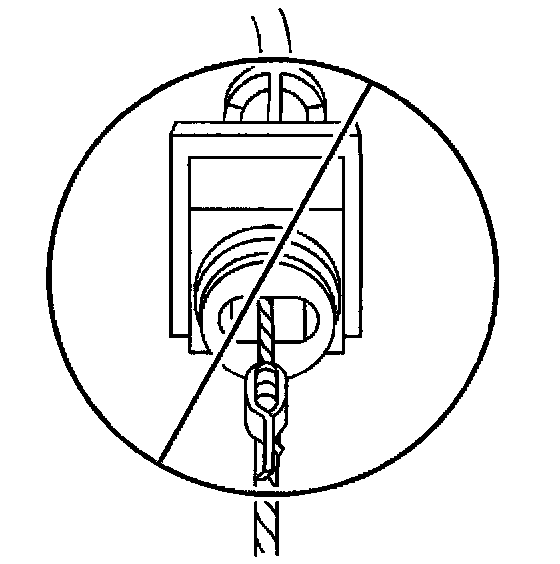

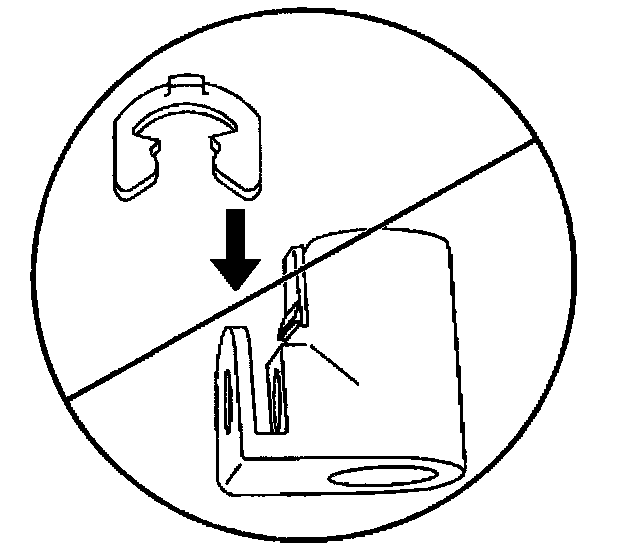

IMPORTANT: Do not remove the C clip from the cruise control cable end connector.

3. The C clip was not designed for removal. Damage may occur.

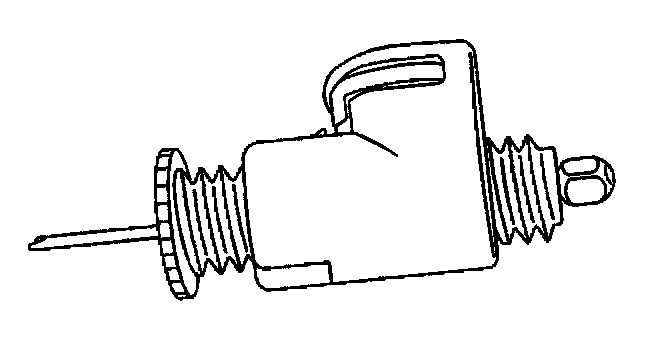

IMPORTANT: Do not remove the adjuster screw from the end of the cruise control cable.




4. Cable adjustment will be needed for proper operation.

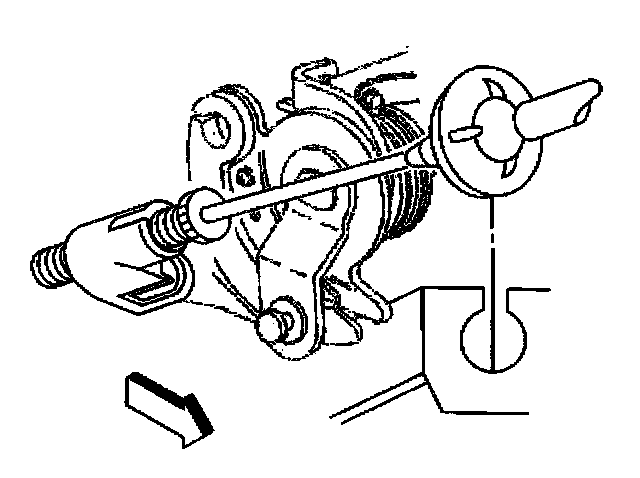

5. Remove the cruise control cable end (2) from the throttle linkage (1).
Use a suitable tool to lightly pry off the end of the cruise control cable end (3) from the throttle linkage.

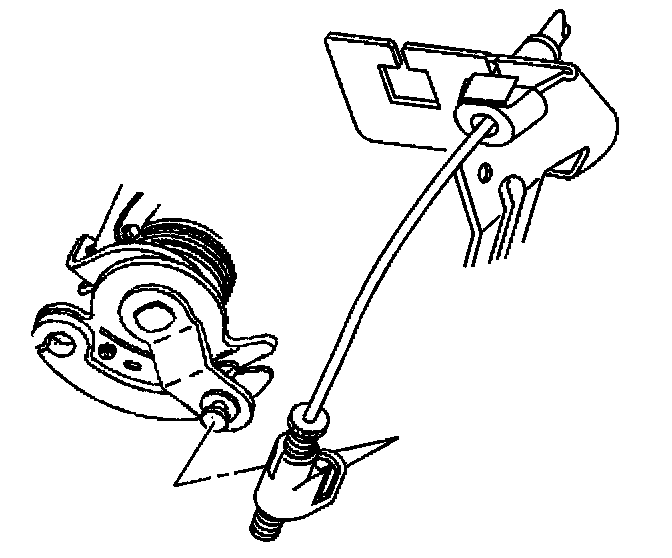

6. Disconnect the cruise control cable from the cable bracket by squeezing the retaining tabs on the cable.
7. Disconnect the cruise cable from the retaining clip on the fan shroud.

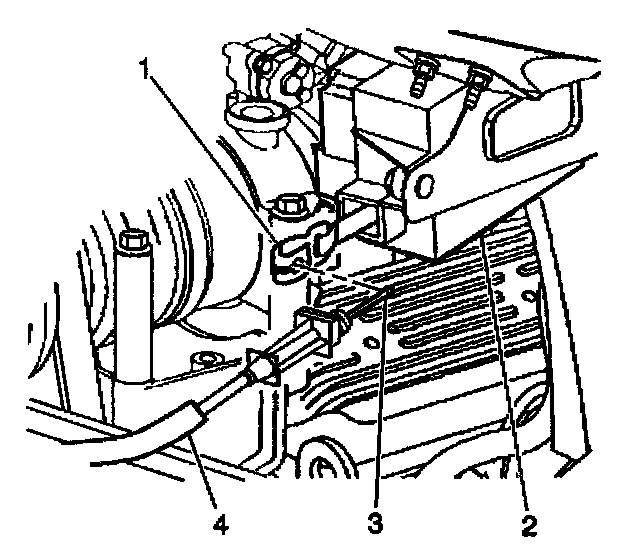

8. Squeeze the retaining tabs on the cruise control cable fitting to expose the cable bead (3) and the buckle (1) of the ribbon.

IMPORTANT: Do not allow the cruise control ribbon to retract into the module assembly.

9. Disconnect the cruise control cable from the cruise control module.
10. Disconnect the cruise control cable bead (3) from the buckle (1) on the end of the ribbon.
11. Remove the cruise control cable from the vehicle.

INSTALLATION PROCEDURE

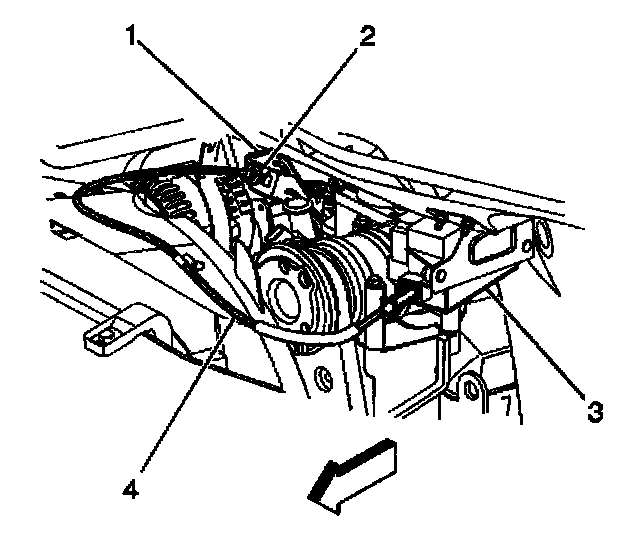

1. Route the cruise control cable (4) from the cruise control module (3) to the throttle body.

IMPORTANT: Do not twist the cruise control module ribbon.

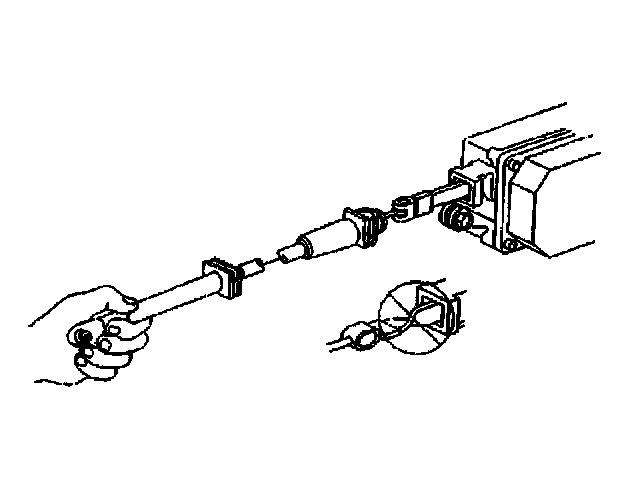

2. Remove all bends and twists from the cruise control module ribbon and cable, by rotating the ribbon.
3. Pull the cruise control cable from the throttle linkage end until the cable is taut.




4. Install the cable bead (3) to the buckle (1) on the end of the ribbon on the cruise control module.




5. Check the orientation of the cruise control ribbon buckle to the cable end fitting.
6. Snap the cruise control cable fitting into the cruise control module.

IMPORTANT: Verify that the cable fitting locking tabs are expanded, and that the tabs are locked in the bracket hole.




7. Install the cruise control cable fitting into the round hole in the cable bracket.




8. Connect the cruise control cable end (2) to the throttle linkage (1).
9. Adjust the cruise control cable.
10. Install the air cleaner assembly.
11. Close the hood.
