Weatherstrip Replacement - Left Rear Door - Upper

Weatherstrip Replacement - Left Rear Door (Upper)

Removal Procedure





1. Use 3M(R) Release Agent or the equivalent, if needed, in order to remove the left side rear door upper weatherstrip from the door.
2. Remove the left side rear door upper weatherstrip retainers from the holes in the door.



Installation Procedure

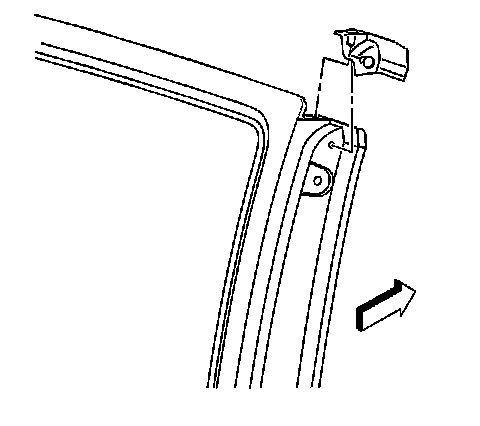

1. Install the left side rear door upper weatherstrip to the door.
2. Press the retainers in the left side rear door upper weatherstrip into the holes in the door.
