Weatherstrip Replacement - Left Rear Door - Lower

Weatherstrip Replacement - Left Rear Door (Lower)

Removal Procedure

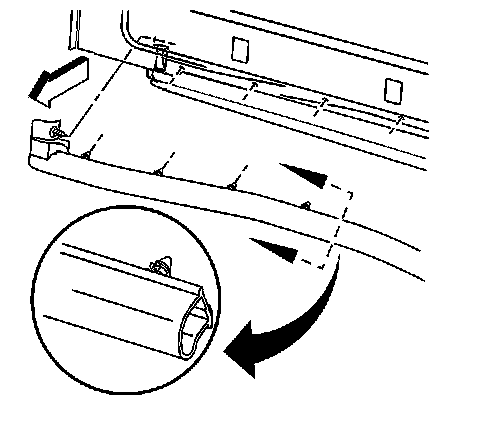

1. Remove the left rear door weatherstrip from the left rear door.
2. Remove the left rear door weatherstrip retainers from the left rear door.



Installation Procedure





1. Install the left rear door weatherstrip to the left rear door.
2. Press the retainers in the left rear door weatherstrip into the holes in the left rear door.
