Rear Door Weatherstrip Replacement - Right Side

Rear Door Weatherstrip Replacement - Right Side

Removal Procedure





1. Use 3M Release Agent or the equivalent, if needed, in order to remove the right rear door weather-strip from the top of the door.

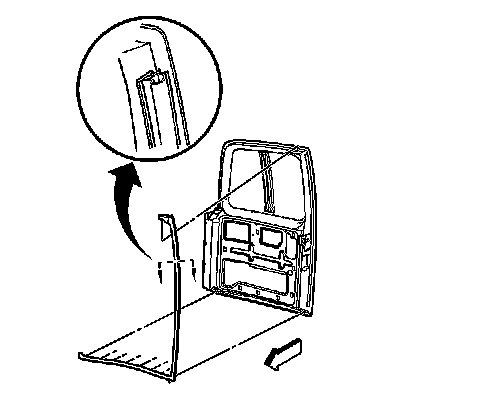

2. Pull the right rear door weather-strip in order to remove the weather-strip from the channel on the side of the door.
3. Remove the right rear door weather-strip and the retainers from the bottom of the door.
4. Clean the door of all of the old adhesive.



Installation Procedure





1. Use the following procedure in order to install the right rear door weather-strip to the channel on the side of the door:

1. Apply a mild soap and water solution to the right rear door weather-strip.
2. Start at the bottom of the channel in the door and slide the right rear door weather-strip up the channel to the top of the door.

2. Install the right rear door weather-strip to the top of the door. Use GM Weather-strip Adhesive GM P/N 12345097, or Canadian P/N 10953479 or the equivalent, if you are reusing the weather-strip.
3. Press the retainers in the right rear door weather-strip into the holes in the door.
