Front Side Door Window Belt Outer Sealing Strip Replacement

Outer Belt Sealing Strip Replacement

Removal Procedure





1. Lower the window.

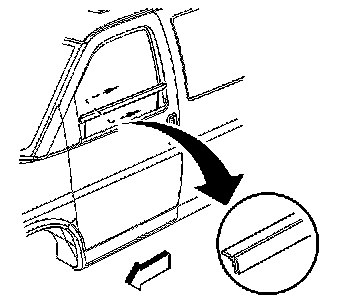

2. Tilt the top of the sealing strip away from the vehicle in an outboard direction.
3. Gently pull the sealing strip away from the pinch weld flange.



Installation Procedure





1. Spray the inside of the sealing strip with a water and soap solution per GM P/N 9985662, or equivalent.
2. Install the sealing strip to the pinch-weld flange by tilting the top edge of the sealing strip slightly outboard to ensure the pinch weld flange correctly enters the retention clips.
3. Push down on sealing strip until all clips are fully seated.
4. Raise the window.
