Front Side Door Upper Auxiliary Sealing Strip Replacement

Front Side Door Upper Auxiliary Sealing Strip Replacement

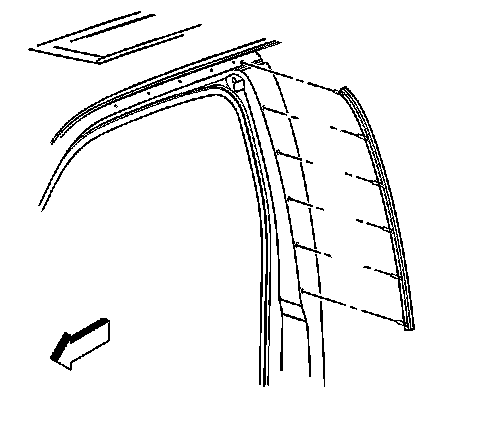

Removal Procedure





1. Remove the weatherstrip from the door pillar by gently pulling on the weatherstrip.
2. Remove the weatherstrip retainers from the holes in the door pillar.



Installation Procedure





1. Install the weatherstrip to the pillar.
2. Press the retainers in the weatherstrip into the holes in the door pillar.
