Front Side Door Roof Drip Weatherstrip Replacement

Front Side Door Roof Drip Weatherstrip Replacement

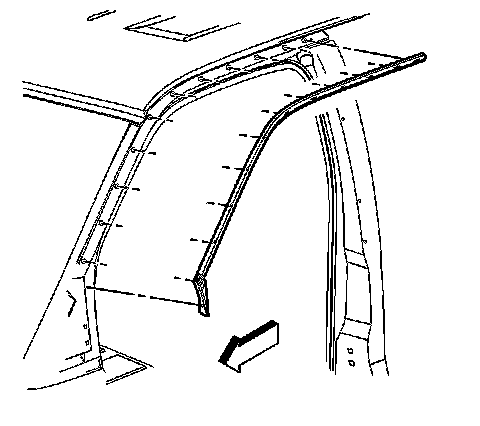

Removal Procedure





1. Remove the weatherstrip from the roof rail.
2. Remove the weatherstrip retainers from the holes in the roof rail.



Installation Procedure





1. Place the weatherstrip into the roof rail.
2. Press the retainers into the weatherstrip and then into the holes in the roof rail.
