Tow Hook Replacement - Rear

Tow Hook Replacement - Rear

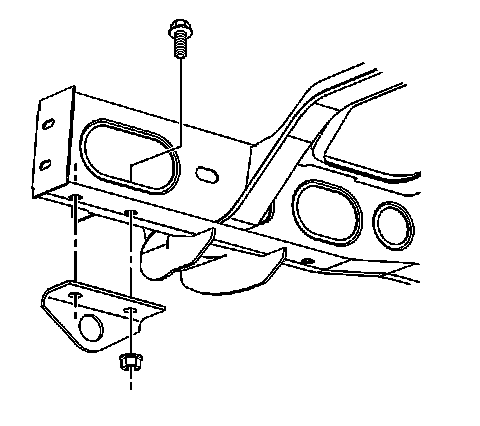

Removal Procedure





1. Remove the nuts that retain the tow hooks to the frame.
2. Remove the tow hook from the frame.
3. Remove the tow hook bolts from the frame.



Installation Procedure





1. Install the tow hook bolts to the frame.
2. Install the tow hook to the frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the nuts that retain the tow hooks to the frame.

Tighten the nuts that retain the tow hooks to the frame to 88 N.m (65 lb ft).
