Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Door Lock Switch
>>
Locations
>>

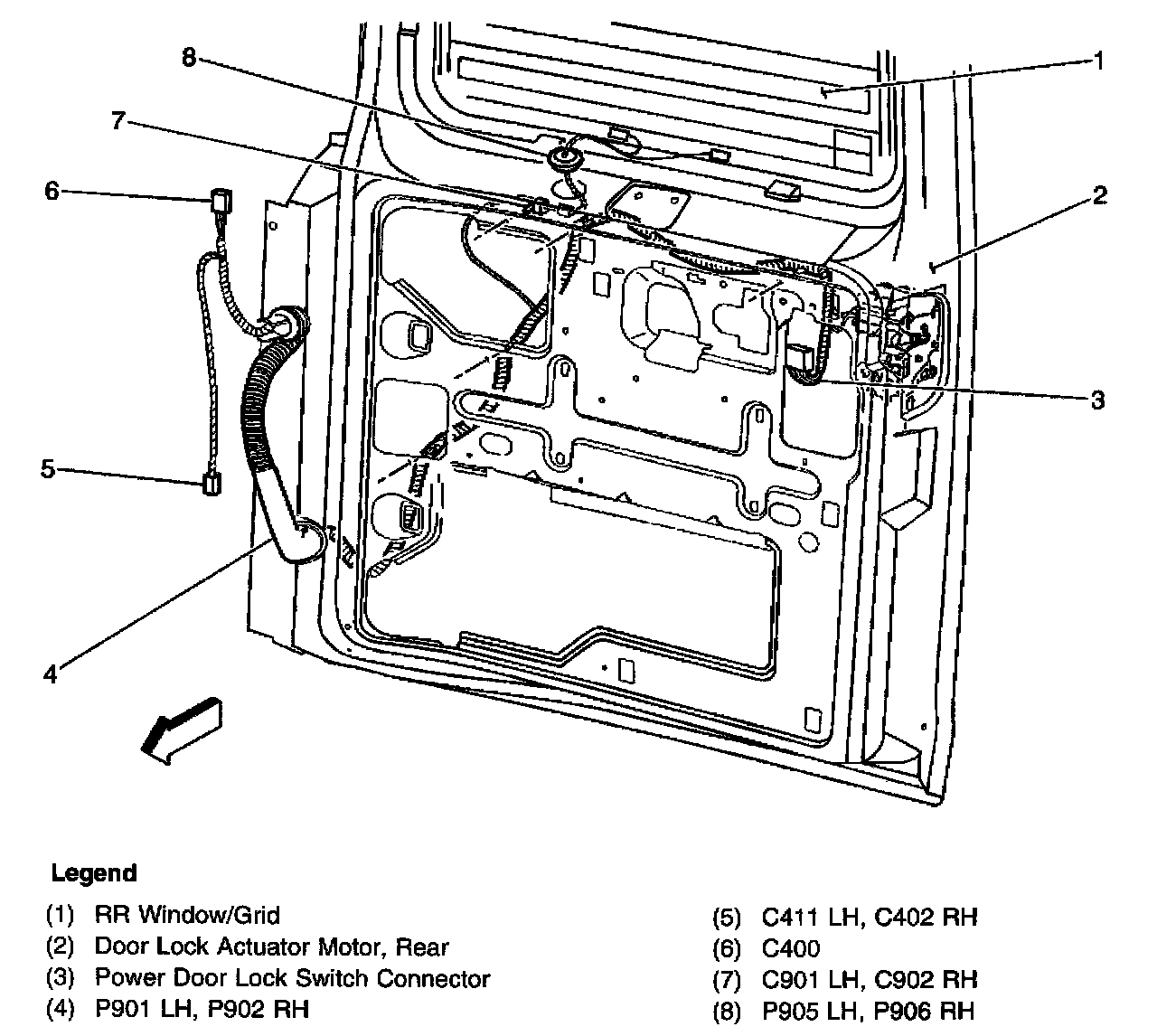

Connector Locations
Connector Locations

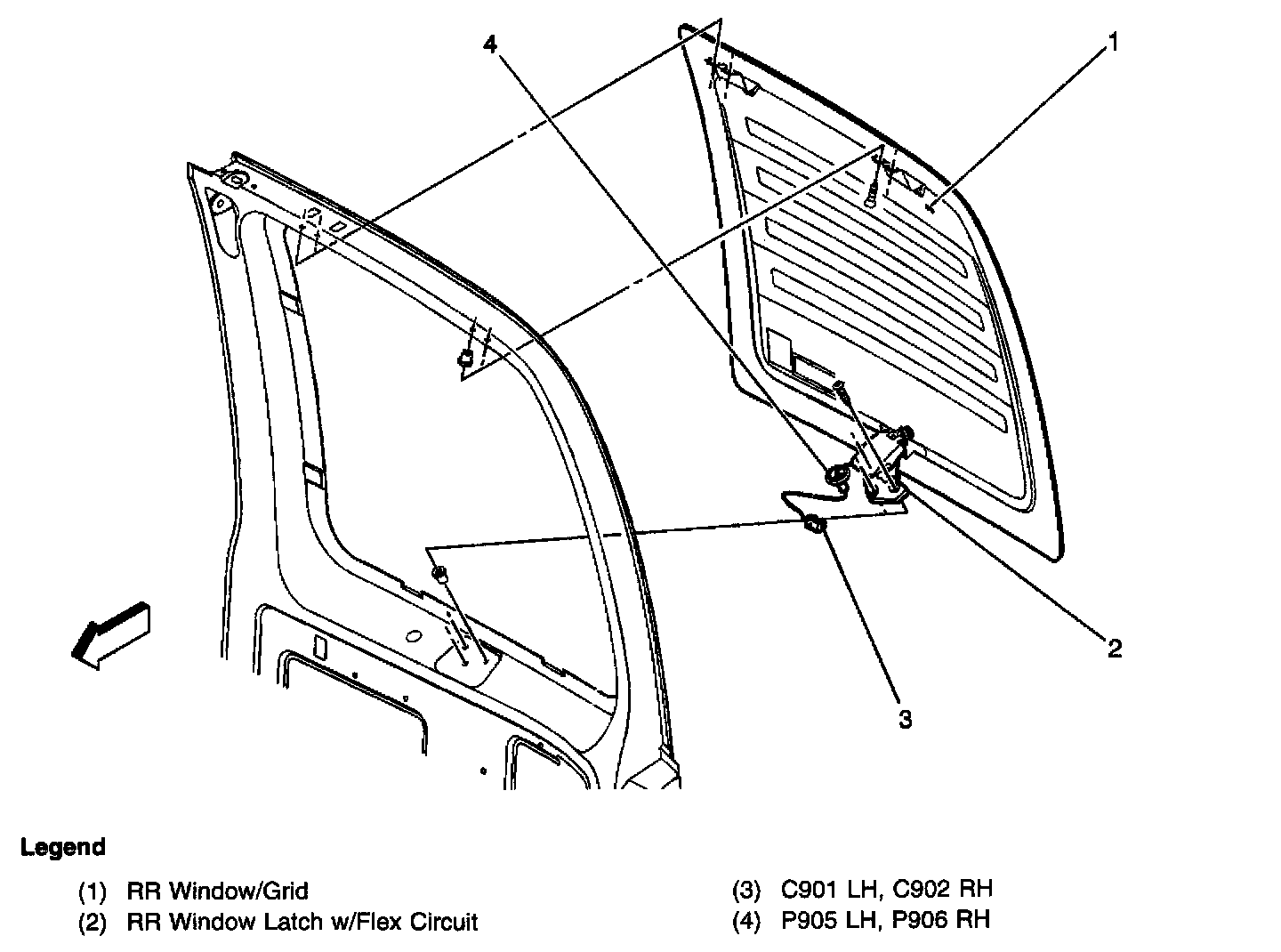

Locations View:
Locations View:
