Rear Seat Cushion Cover and Pad Replacement (All Except Luxury)

Rear Seat Cushion Cover and Pad Replacement (All Except Luxury)

Removal Procedure

1. Remove the rear passenger seat from the vehicle. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) .
2. Remove the rear passenger seat riser. Refer to Rear Seat Riser Replacement (Rear Seat Riser Replacement) .
3. Remove the seatback from the seat cushion. Refer toRear Seat Back Cushion Cover and Pad Replacement (All Except Luxury) (Rear Seat Back Cushion Cover and Pad Replacement (All Except Luxury)) .

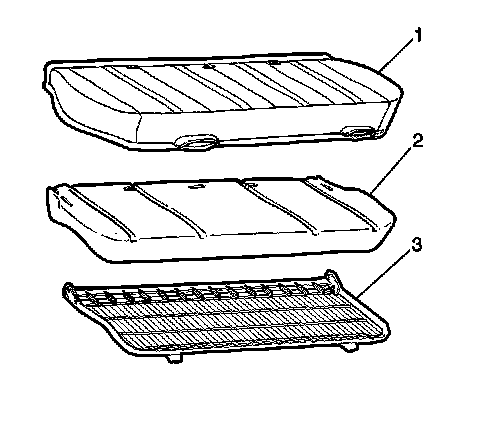

4. Remove the hog rings from the rear edge of the seat cushion cover (1).
5. Remove the seat belt buckles. Refer to Rear Seat Belt Buckle Replacement (All Except Luxury) in Seat Belts.
6. Remove all the remaining hog rings that retain the seat cushion cover to the seat cushion frame (3).
7. Release the hook and loop strips that retain the seat cushion cover to the foam pad (2).
8. Remove the seat cushion cover from the foam pad.



Installation Procedure





1. Install the seat cushion cover (1) to the foam pad (2).
2. Engage the hook and loop strips that retain the seat cushion cover to the foam pad.
3. Install the seat belt buckles. Refer Rear Seat Belt Buckle Replacement (All Except Luxury) in Seat Belts.
4. Install the hog rings in order to retain the seat cushion cover to the seat cushion frame (3).
5. Install the seatback to the seat cushion. Refer toRear Seat Back Cushion Cover and Pad Replacement (All Except Luxury) (Rear Seat Back Cushion Cover and Pad Replacement (All Except Luxury)) .
6. Install the rear passenger seat risers. Refer to Rear Seat Riser Replacement (Rear Seat Riser Replacement) .
7. Install the rear passenger seat to the vehicle. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) .
