Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Electrical Diagrams
>>
Power Mirror Switch and Motors
Power Mirror Switch and Motors

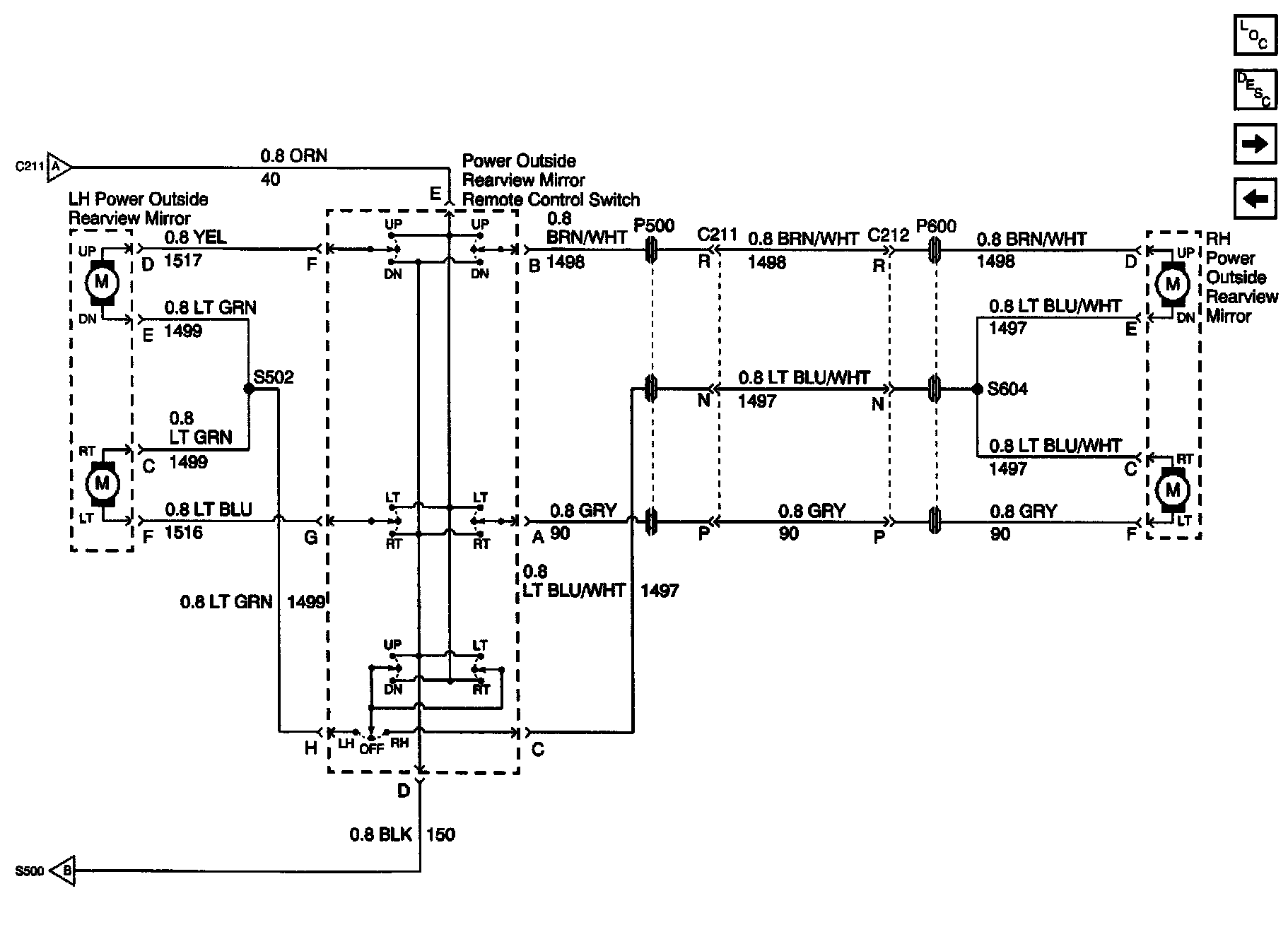

Outside Mirror Schematics: Power Mirror Switch and Motors:
