Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Power Door Locks - Side Door Delay Always Locks
Power Door Locks - Side Door Delay Always Locks

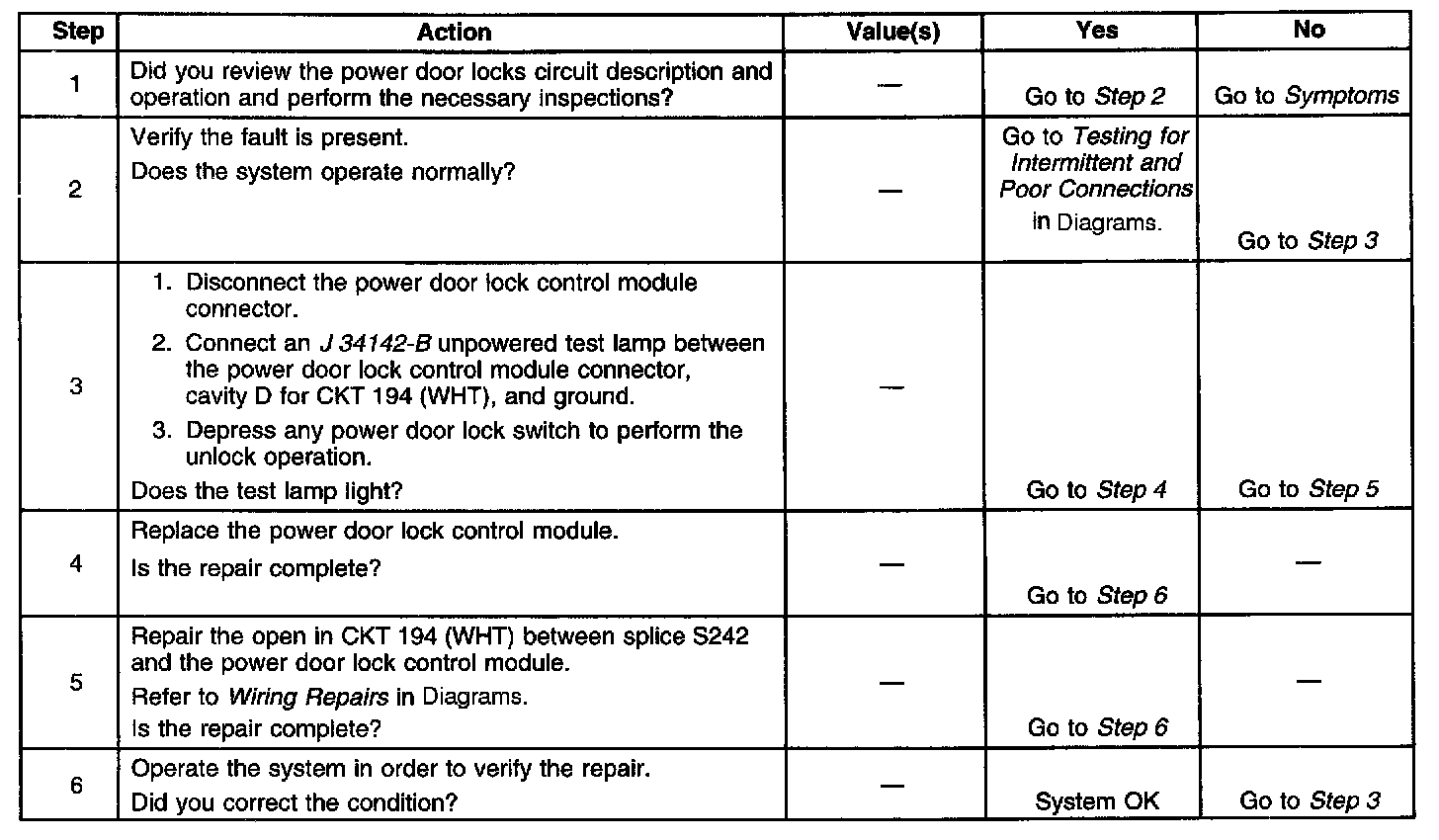

Diagnostic Chart:
